The STM32L4R9AGI6 devices are an ultra-low-power microcontroller family (STM32L4+ family) based on the high-performance Arm® Cortex®-M4 32-bit RISC core. They operate at frequencies up to 120 MHz.

The STM32L4R9AGI6 devices offer a fast 12-bit ADC (5 Msps), two comparators, two operational amplifiers, two DAC channels, an internal voltage reference buffer, a low-power RTC, two general-purpose 32-bit timers, two 16-bit PWM timers dedicated to motor control, seven general-purpose 16-bit timers and two 16-bit low-power timers. These devices support four digital filters for external sigma-delta modulators (DFSDM). In addition, up to 24 capacitive sense channels are available.

Product attributes

Product Type: ARM Microcontrollers - MCU

Family: STM32L4R9AG

Mounting Style: SMD/SMT

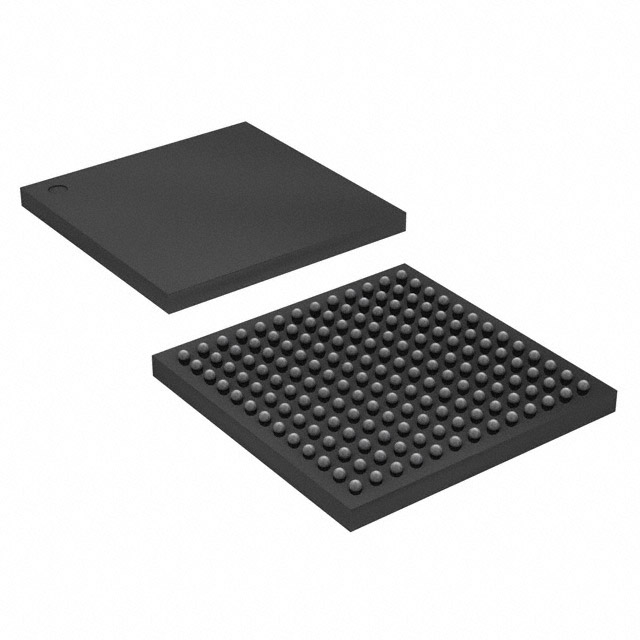

Package / Case: UFBGA-169

Core: ARM Cortex M4

Program memory size: 1 MB

Data bus width: 32 bit

ADC resolution: 12 bit

Maximum clock frequency: 120 MHz

Number of inputs/outputs: 131 I/O

Data RAM size: 640 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 3.6 V

Min. operating temperature: - 40 C

Max. operating temperature: + 85 C

Analogue supply voltage: 1.62 V to 3.6 V, 1.8 V to 3.6 V

DAC resolution: 12 bit

Data Ram type: SRAM

I/O Voltage: 1.08 V to 3.6 V

Interface type: CAN, I2C, LPUART, SAI, SPI, UART, USART, USB OTG FS

Humidity sensitivity: Yes

Number of ADC channels: 14 Channel

Number of timers/counters: 16 Timer

Processor family: STM32L4R9
