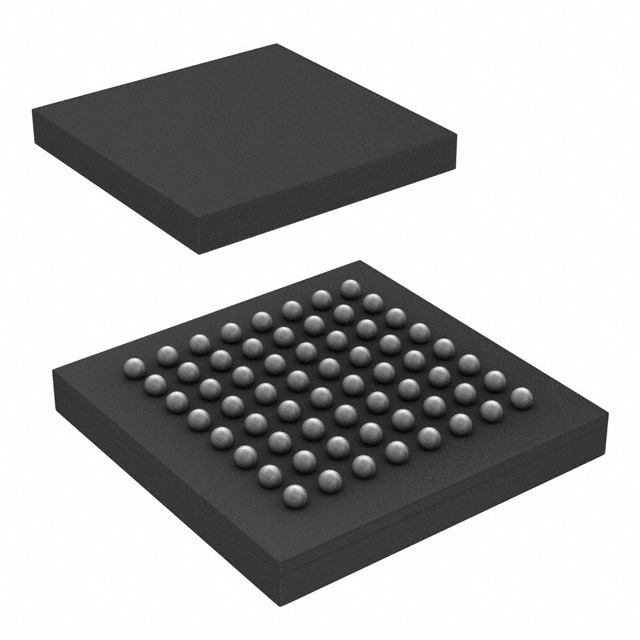

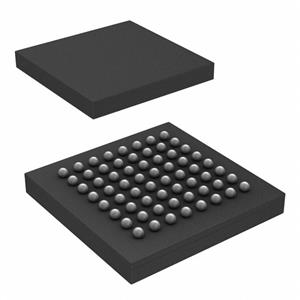

The STM32G431R8I6 device is a microcontroller based on a high-performance ARM® Cortex®-M4 32-bit RISC core in a 64-pin UFBGA package with operating frequencies up to 170MHz. The Cortex-M4 core uses a single-precision floating-point unit (FPU) that supports all Arm single-precision data processing instructions and all data types. It also implements a complete set of DSP(digital signal processing) instructions and a memory protection unit (MPU) to improve the security of applications.

Product specifications:

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit

Speed: 170MHz

Connection capability: CANbus, I²C, IrDA, LINbus, SPI, UART/USART

Peripheral: undervoltage detection/reset, DMA, I²S, POR, PWM, WDT

Number of I/ OS: 52

Program storage Capacity: 64KB (64K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 32K x 8

Voltage-power supply (Vcc/Vdd) : 1.71V to 3.6V

Data converter: A/D 23x12b SAR; D/A 4x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: surface mount type

Package/case: 64-UFBGA

Supplier Device Package: 64-UFBGA (5x5)
