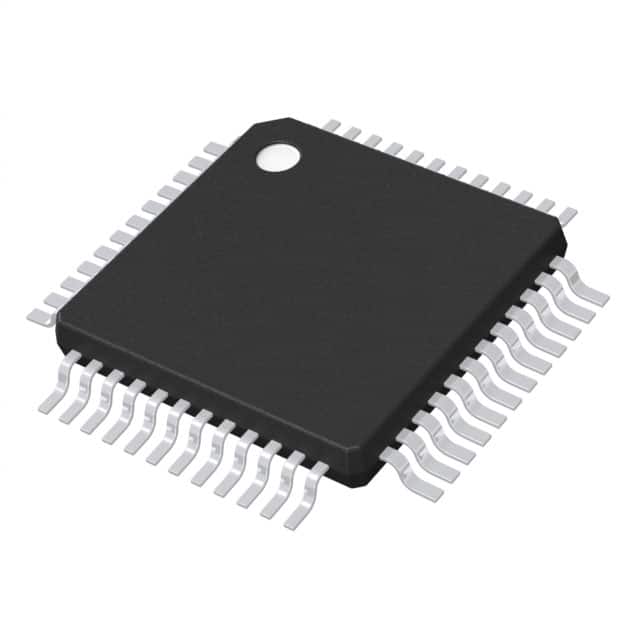

STM32L422CBT6 ARM Microcontroller - MCU Ultra Low Power FPU Arm Cortex-M4 MCU 80 MHz 128 Kbytes Flash , USB

The STM32L422CBT6 device is an ultra-low power microcontroller based on the high-performance Arm® Cortex®-M4 32-bit RISC core, operating at up to 80 MHz. The Cortex-M4 core features a single-precision floating-point unit (FPU) that supports all Arm® single-precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) for enhanced application security.

Product attributes

Product Type: ARM Microcontrollers - MCU

Family: STM32L422CB

Mounting Style: SMD/SMT

Core: ARM Cortex M4

Program memory size: 128 kB

Data bus width: 32 bit

ADC resolution: 2 x 12 bit

Max. clock frequency: 80 MHz

Number of inputs/outputs: 38 I/O

Data RAM size: 40 kB

Supply voltage - min: 1.71 V

Supply voltage - max: 3.6 V

Min. operating temperature: - 40 C

Max. operating temperature: + 85 C

DAC resolution: 12 bit

Data Ram type: SRAM

Interface type: I2C, SPI, UART

Humidity sensitivity: Yes

Product: MCU+FPU

Product Type: ARM Microcontrollers - MCU

Program memory type: Flash

Factory Pack Quantity: 1500

Sub Category: Microcontrollers - MCUs

Brand Name: STM32

Unit weight: 180 mg
