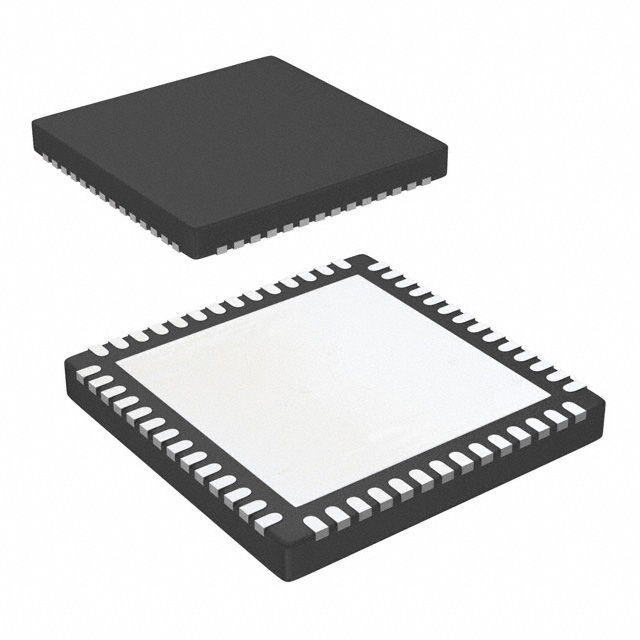

For picture reference, please see the specifications
< >

Commodity Model:CC2538NF11RTQR

Trade Name:RF System-on-Chip - SoC

Brand:TI

Particular Year:24+

Package:VQFN56

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
CC2538NF11RTQR
Package
VQFN56
Describe
Powerful Wireless Microcontroller System-on-Chip for 2.4GHz IEEE 802.15.4, 6LoWPAN and ZigBee® Applications

Product Description

The CC2538NF11RTQR is the ideal wireless microcontroller system-on-chip (SoC) for high-performance ZigBee applications. The device includes a powerful ARM Cortex M3-based MCU system with up to 32KB of on-chip RAM and up to 512KB of on-chip Flash, as well as reliable IEEE 802.15.4 RF functionality.


CC2538NF11RTQR Device Attributes:

Product Category: RF System-on-Chip - SoCs

Type: Zigbee, 6LoWPAN, LR-WPAN

Core: ARM Cortex M3

Operating frequency: 2.4 GHz

Maximum data rate: 250 kbps

Output power: 7 dBm

Sensitivity: - 97 dBm

Supply voltage - min: 2 V

Supply voltage - max: 3.6 V

Receive supply current: 20 mA

Transmit supply current: 24 mA

Programme memory size: 128 kB

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Package / Case: QFN-56

Development Kit: CC2538DK

Humidity Sensitivity: Yes

Mounting Style: SMD/SMT

Family: CC2538

Technology: Si

Unit Weight: 200 mg


Applications

- Smart grid and home LAN

- Home and building automation

- Smart Lighting Systems

- Wireless Sensor Networks

- Internet of Things
