DS125DF1610FB/NOPB -  9.8Gbps to 12.5Gbps 16-Channel Retimer

Product Description

DS125DF1610FB/NOPB is a sixteen-channel multi-rate retimer with integrated signal conditioning features. The device includes a fully adaptive Continuous Time Linear Equalizer (CTLE), Decision Feedback Equalizer (DFE), clock and data recovery (CDR), and a transmit FIR filter to enhance the reach and robustness over long, lossy, crosstalk impaired high speed serial links to achieve BER < 1×10-15.

Product Features

4x4 Analog Cross Point Switch for Each Quad

Fully Adaptive CTLE

Self tuning DFE, with Optional Continuous Adaption

Configurable VGA

Adjustable Transmit VOD

Adjustable 3-tap Transmit FIR Filter

On-chip AC Coupling on Receive Inputs

Locks to Half/Quarter/Eighth Data Rates for Legacy Support

On-chip Eye Monitor(EOM), PRBS Checker, Pattern Generator

Supports JTAG Boundary Scan

Programmable Output Polarity Inversion

Input Signal Detection, CDR Lock Detection

Single 2.5 V ±5% Power Supply

SMBus Based Register Configuration

Optional EEPROM Configuration

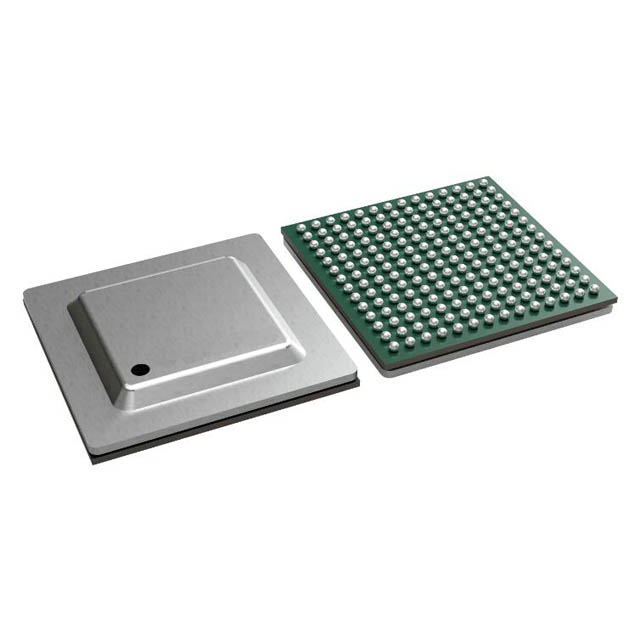

15 mm × 15 mm, 196-pin FCBGA Package

Operating Temp Range : –40°C to +85°C

Applications

• SFF-8431

• CPRI

• 10G/40G Ethernet

• Backplanes
