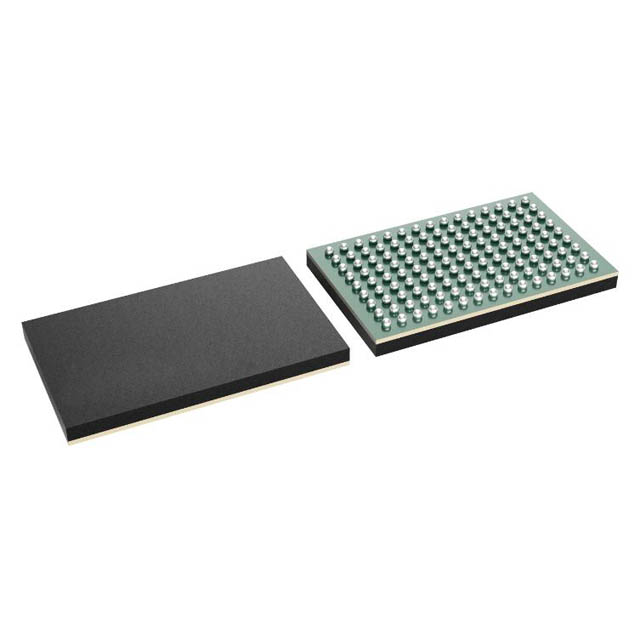

DS280MB810ZBLR -  Low Power 28Gbps 8 Channel Linear Repeater with Cross-point

Product Description

DS280MB810ZBLR is an extremely low-power, high-performance eight-channel linear equalizer supporting multi-rate, multi-protocol interfaces up to 28 Gbaud NRZ. It is used to extend the reach and improve the robustness of high-speed serial links for backplane, front-port, and chip-to-chip applications.

Features

Octal-Channel Multi-Protocol Linear Equalizer Supporting up to 28 Gbaud NRZ Interfaces

Integrated 2x2 Cross-point with Pin or Register Control for Mux, Fanout, and Signal Crossing Applications

Low Power Consumption: 93 mW / Channel (Typical)

No Heat Sink Required

Linear Equalization for Seamless Support of Link Training, Auto-Negotiation, and FEC Pass-Through

Extends Channel Reach by 17dB+ Beyond Normal ASIC-to-ASIC Capability at 14 GHz

Ultra-Low Latency: 100 ps (Typical)

Low Additive Random Jitter

Small 8 mm x 13 mm BGA Package with Integrated RX AC Coupling Capacitors for Easy Flow-Through Routing

Unique Pinout Allows Routing High-Speed Signals Underneath the Package

Pin-Compatible Retimer with Cross-point Available

Single 2.5-V ±5% Power Supply

–40°C to +85°C Operating Temperature Range

Applications

• Backplane and Mid-Plane Signal Distribution Plus Equalization

• Mux and De-Mux for Failover Redundancy

• Front-Port Eye Opener Plus Signal Distribution for Switching Between Ports
