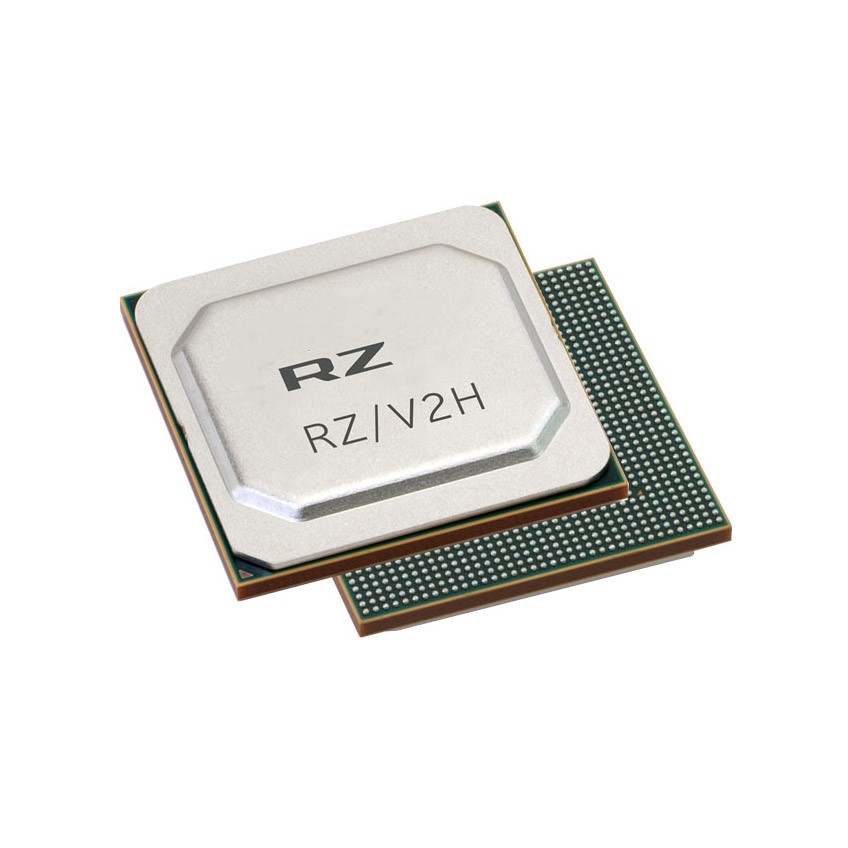

The R9A09G057H42GBG high-end AI MPU features Renesas Electronics' proprietary AI Accelerator-Dynamic Reconfigurable Processor (DRP-AI3), a quad-core Arm® Cortex®-A55 (1.8GHz) Linux processor, and a dual-core Cortex®-R8 (800MHz) real-time processor. In addition, the RZ/V2H includes another dynamic, reconfigurable processor (DRP). This processor accelerates image processing, such as OpenCV, as well as dynamic computations required for robotics applications. It also features high-speed interfaces such as PCIe®, USB 3.2, and Gigabit Ethernet, making it an ideal microprocessor for applications such as autonomous robotics and machine vision in factory automation, where advanced AI processing must be achieved with low power consumption.

Product Features

Cortex-A55 (1.8GHz) x 4 cores

Cortex-R8 (800MHz) x 2 cores

Cortex-M33 (200MHz) x 1 core

AI Accelerator DRP-AI3 (8TOPS/thick model, 80TOPS/sparse model)

Dynamically Reconfigurable Processor (DRP)

Arm® Mali™-C55 ISP (optional)

6MB on-chip SRAM

LPDDR4/LPDDR4X memory interface

Gigabit Ethernet interface x 2

USB 2.0 Interface x 2 (On-the-Go (OTG) x 1, Host x 1)

USB 3.2 (Gen2) Interface x 2 (Host only)

PCIe® interface (Gen3/4 lanes) x 1

MIPI® CSI-2® Camera Interface x 4

CAN interface (CAN FD) x 6

Package: BGA, 9mm x 19mm 1368 pins, 0.5mm pitch

Application

Robotics

Automated Guided Vehicles (AGV)

Autonomous Mobile Robots (AMR)

Factory Automation (FA) Machine Vision

Intelligent Retail
