TEF8105EN/N1 Car Radar transceiver is a single-chip automotive FMCW radar transceiver for short-range, medium-range and long-range RADAR applications, covering the full carRADAR frequency band from 76 GHz to 81 GHz.

Specification

Frequency Range:76 GHz to 81 GHz

Maximum Data Rate:40 Mbps

Supply Voltage - Min:1.045 V

Supply Voltage - Max:3.63 V

Output Power:11 dBm, 12 dBm

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 135 C

Interface Type:SPI

Operating Supply Voltage:1.13 V to 3.3 V

Features

Fully integrated RFCMOS Radar Transceiver for 76-81 GHz

3 TX (w/BPSK), 4 RX Channels

Optimized for Fast Chirp Modulation

Support for 2 GHz bandwidth, 4 GHz with chirp stitching

Automotive junction Temperature Range -40°C up to 135°C

Support cascading of TEF810X devices for Imaging Radar

CSI-2, CIF, and LVDS Interface

Developed in accordance with ISO 26262 SEoOC methodology. Supporting ASIL B applications

Built-in functional safety monitoring circuit

Low power dissipation < 1.2 W

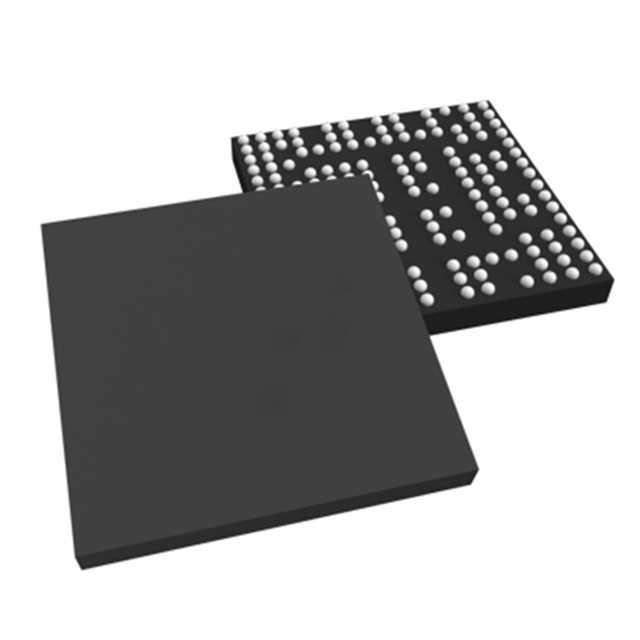

Very small footprint : 7.5mm x 7.5mm eWLB package with 15 x 15 sized Ball Grid Array (BGA)

Applications

Front-side of car:

Autonomous Emergency Braking (AEB)

Adaptive Cruise Control (ACC)

Narrow path assist

Lateral collision avoidance

Side pre-crash

Traffic jam assist

Rear-Side of car:

Lane Change Assist (LCA)

Blind Spot Detection (BSD)

Rear Cross Traffic Alert (RCTA)

Rear pre-crash

Parking Assist (PA)
