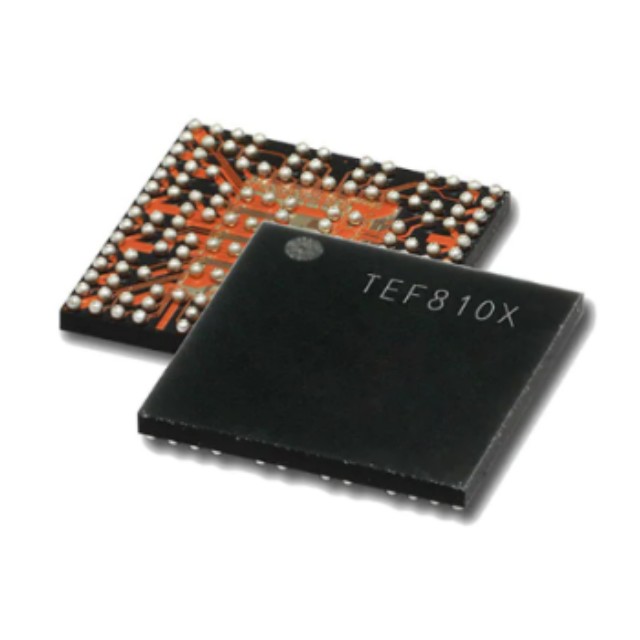

The TEF8102EN is a fully integrated single chip RFCMOS 77GHz automotive FMCW radar transceiver. The device is intended to be used for short-, medium- and long-range radar applications covering the entire automotive radar band from 76 GHz to 81 GHz.The TEF8102EN radar transceiver is a low-power radar transceiver that integrates three transmitters, four receivers, analogue-to-digital converters and a low phase noise voltage-controlled oscillator.

Features

System Features

Fully integrated RFCMOS radar transceiver for 76-81 GHz radars

3 TX (w/BPSK), 4 RX channels

Suitable for fast linear FM modulation

Supports 2GHz bandwidth, 4GHz with linear FM splicing

Automotive junction temperature range -40°C to 135°C

Supports cascaded TEF810X devices for imaging radars

CSI-2, CIF and LVDS interfaces

Developed according to ISO 26262 SEoOC methodology Supports ASIL B applications

Built-in functional safety monitoring circuitry

Low power loss <1.2W

Very small form factor: 7.5mmx7.5mm eWLB package with 15x15 size ball grid array (BGA)

Applications

Automotive Front Side

- Autonomous Emergency Braking (AEB)

- Adaptive Cruise Control (ACC)

- Narrow Road Assist

- Side Collision Avoidance

- Side Pre-Collision

- Traffic Jam Assist

Rear Side of Vehicle

- Lane Change Assist (LCA)

- Blind Spot Detection (BSD)

- Rear Cross Traffic Alert (RCTA)

- Rear Pre-Collision

- Parking Assist (PA)
