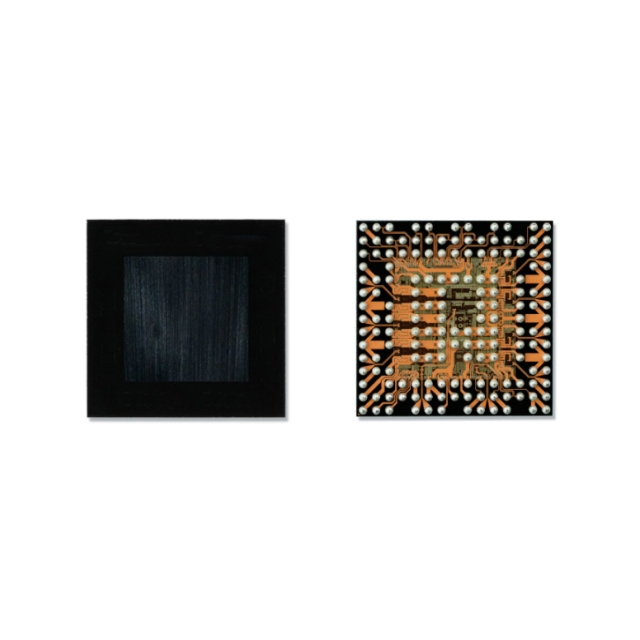

The TEF8222EN1 automotive radar transceiver is a high-performance single-chip, low-power automotive FMCW radar transceiver that covers the entire automotive radar band from 76 GHz to 81 GHz. This second-generation scalable transceiver supports entry-level NCAP sensors up to Autopilot L2 + sensors and beyond, and supports short-, medium- and long-range radar applications, including cascaded high-resolution imaging radars. This fully integrated RFCMOS chip contains 3 transmitters, 4 receivers, ADC conversion, phase rotator and a low phase noise VCO.

Features

● Highly integrated transceiver

● Integrated 3 transmitter and 4 receiver channels

● Integrated VCO, PLL, and ADC

● Supports BPSK and QPSK

● 6-bit phase rotator

● Supports MIMO radar operation

● Supports FMCW radar applications

● Suitable for fast linear FM modulation

● Wide frequency range

● Operates in the 76 GHz to 81 GHz band

● Wide bandwidth

● Flexible linear FM bandwidth up to 5GHz

● Effective bandwidth up to 4GHz

● High performance

● Enhanced RF performance with 13.5dBm power output

● Low noise figure: 11.5dB

● Low phase noise: 95dBc/Hz at 1MHz

Applications

● Automotive electronics

● Reverse Automatic Emergency Braking (R-AEB)

● Front/Rear Cross Traffic Assist (FCTA/RCTA)

● Parking Assist (PA)

● Blind Spot Detection (BSD)

● Cascading Imaging Radar (IMR)

● Automatic Emergency Braking (AEB)

● Adaptive Cruise Control (ACC)

● Lane Change Assist (LCA)
