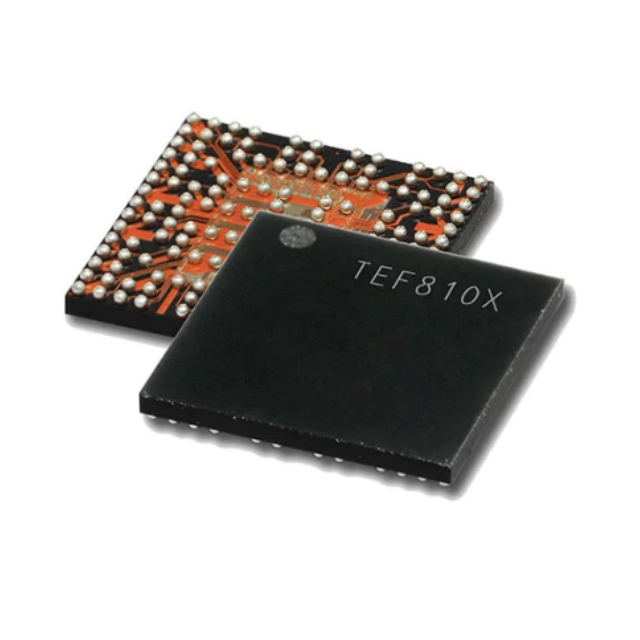

The TEF8101EN is a fully integrated single chip RFCMOS 77GHz automotive FMCW radar transceiver. The device is intended to be used for short-, medium- and long-range radar applications covering the entire automotive radar band from 76 GHz to 81 GHz.The TEF810X radar transceiver is a low-power radar transceiver that integrates three transmitters, four receivers, analogue-to-digital converter, and a low-phase noise voltage-controlled oscillator.

Features

● Fully integrated RFCMOS radar transceiver for 76-81GHz radars

● 3 TX (w/BPSK), 4 RX channels

● Suitable for fast linear FM modulation

● Supports 2GHz bandwidth, 4GHz with linear FM splicing

● Automotive junction temperature range -40°C to 135°C

● Support for cascaded TEF810X devices for imaging radars

● CSI-2, CIF and LVDS interfaces

● Developed according to ISO 26262 SEoOC methodology. Supports ASIL B applications

● Built-in functional safety monitoring circuitry

● Low power loss <1.2W

● Extremely small form factor: 7.5mmx7.5mm eWLB package with 15x15 size ball grid array (BGA)

Applications

● Automatic Emergency Braking (AEB)

● Adaptive Cruise Control (ACC)

● Blind spot monitoring/detection (BSD/BSM)

● Rear Cross Traffic Alert (RCTA)

● Forward Car Crossing Alert (FCTA)

● Rear Collision Avoidance (RCA)

● Parking Assist (PA)

● Rear Occupant Detection/Rear Occupant Alert (ROD/ROA)

● Cocoon Radar

● Imaging Radar
