Trade Name:Single Axis BLDC Module
Brand:ADI
Particular Year:24+
Package:Module
Delivery Date:New and Orignal
Stock: 1000pcs

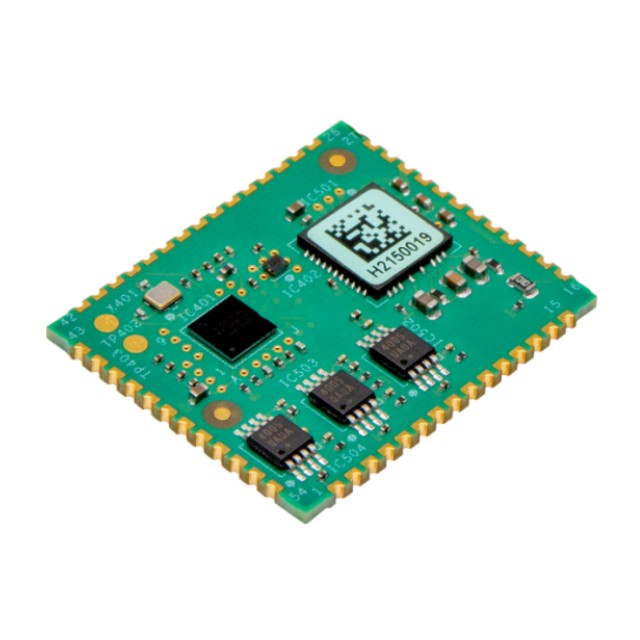

The TMCM-1690-TMCL is a single-axis FOC servo controller gate driver module for three-phase brushless DC (BLDC) and DC motors. Single-axis FOC servo controller gate driver module for BLDC and DC motors with gate drive currents up to 1.5A and a supply voltage of +60V (nominal +48V). Supports incremental encoders, digital Hall sensors and absolute encoders for position feedback.
Characteristics
Supply Voltage +10 to +60V DC
FOC servo controllers and gate drives
Modules for BLDC and DC motors
0.5A/1.0A/1.5A gate drive current
PWM frequency up to 120kHz
On-board current-sense amplifier
Supports UART (RS232/RS485 ready) and CAN interfaces
Supports incremental encoders (ABN), digital HALL sensors, absolute SPI encoders
Reference switch input
Compact size (27 mm x 22.5 mm)
Applications
Robotics
Laboratory automation
Manufacturing
Factory automation
Servo Drives
Electric tables and chairs
Industrial Brushless DC Motors and DC Motors
Drives
