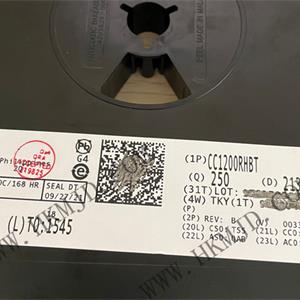

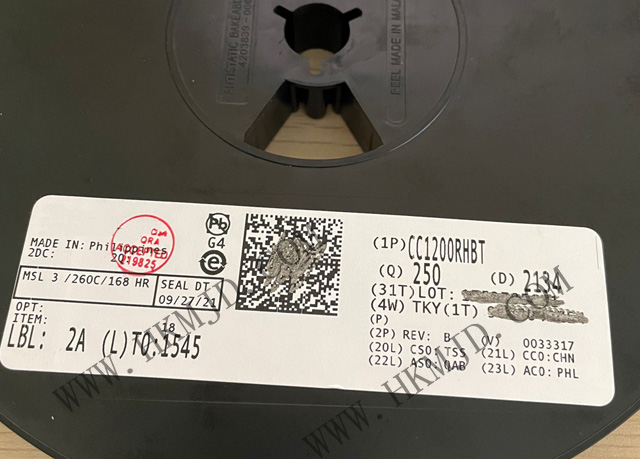

Trade Name:CC1200RHBT
Data Manual:CC1200RHBT.pdf
Brand:TI
Particular Year:23+
Package:VQFN32
Delivery Date:New and Original
Stock: 2500pcs
The CC1200RHBT device is a fully integrated single-chip RF transceiver designed to achieve high performance with very low power consumption and low voltage operation in cost effective wireless systems. All filters are integrated so that expensive external surface acoustic wave (SAW) and intermediate frequency (IF) filters are not required. The devices are primarily used in ISM (Industrial, Scientific and Medical) and in the SRD (Short Range Device) bands of 164-190MHz, 410-475MHz and 820-950MHz.
The CC1200RHBT devices provide extensive hardware support for packet processing, data buffering, burst transmission, idle channel evaluation, link quality indication and radio wake-up. The main operating parameters of the CC1200 devices can be controlled by the SPI interface. In a typical system, the CC1200 device will be used with a microcontroller and very few external passive components.
Properties
Product type: RF transceiver
Type: Zigbee
Frequency range: 164 MHz to 190 MHz, 410 MHz to 475 MHz, 820 MHz to 950 MHz
Maximum data rate: 1250 kbps
Modulation format: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, MSK, OOK
Supply voltage - min: 2 V
Supply voltage - max: 3.6 V
Receive supply current: 23 mA
Transmit supply current: 46 mA
Output power: 6 dBm
Minimum operating temperature: - 40 C
Maximum operating temperature: + 85 C
Interface type: SPI
Package / Case: VQFN-32
Max. operating frequency: 950 MHz
Humidity sensitivity: Yes
Mounting style: SMD/SMT
Number of receivers: 1
Number of transmitters: 1
Sensitivity: - 123 dBm
Series: CC1200
Applications
Low power, high performance, wireless systems with data rates up to 1250 kbit/s
169/433/868/915/920 MHz ISM/SRD bands
Other frequency bands may be supported:
137-158.3MHz, 205-237.5MHz, and 274-316.6MHz
Smart Meters (AMR/AMI)
Home and building automation
Wireless alarm and security systems
Industrial monitoring and control
Wireless medical applications
Wireless sensor networks and active RFID
IEEE 802.15.4g applications
Wireless M-Bus all modes
