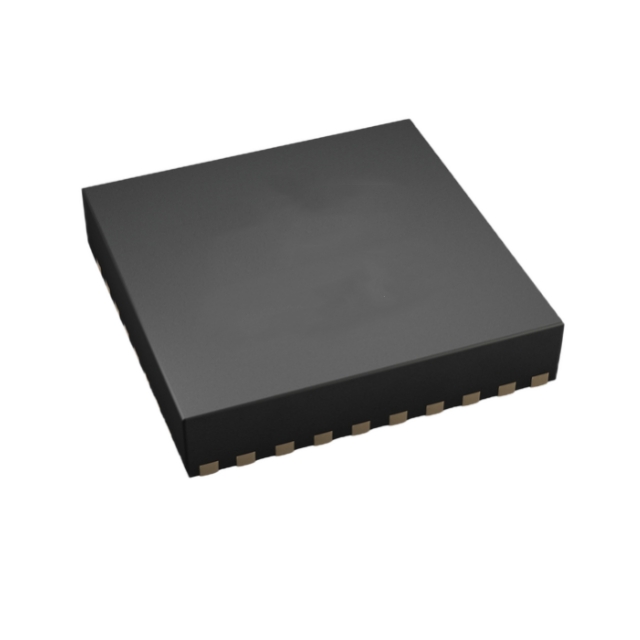

Trade Name:KW45Z41083AFPBR
Brand:NXP
Particular Year:24+
Package:HVQFN40
Delivery Date:New and Orignal
Stock: 1000pcs
The KW45Z41083AFPBR's triple-core architecture integrates a 96MHz CM33 application core, a dedicated CM3 wireless module core, and an isolated EdgeLock security zone. The flash-based wireless module core with dedicated SRAM provides a highly configurable and scalable software implementation of the wireless module, freeing up resources on the main core to the customer application space.
Product Attributes
Type: TxRx + MCU
RF Family/Standard: Bluetooth
Protocol: Bluetooth v5.3
Modulation: FSK, GFSK, GMSK, MSK
Frequency: 2.36GHz ~ 2.4835GHz
Data Rate (Max): 2Mbps
Power - Output: 10dBm
Sensitivity: -106dBm
Storage Capacity: 1MB Flash, 128kB RAM
Serial Interface: GPIO, I2C, PWM, SPI, UART
Voltage - Supply: 0.9V ~ 2.4V, 1.175V ~ 3.6V
Current - Receive: 4.1mA ~ 10.01mA
Current - Transmit: 4.6mA ~ 22.4mA
Operating Temperature: -40°C ~ 105°C (TA)
Grade: Automotive Grade
Qualification: AEC-Q100
Mounting Type: Surface Mount, Wettable Sides
Package/Housing: 40-VFQFN Exposed Pad
Supplier Device Package: 40-HVQFN (6x6)
Applications
● Industrial Controls
●Building HVAC control
●Building control and monitoring
●Automotive electronics
●Car sharing
●Smart Car Access Systems
