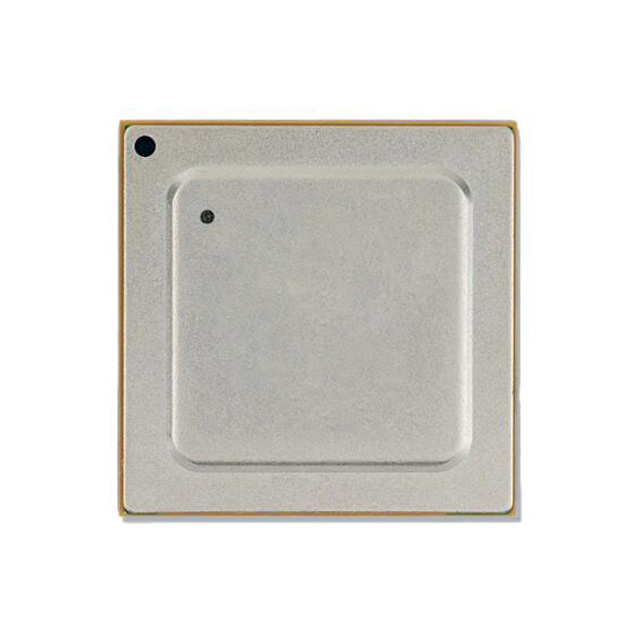

T1024NSN7KQPA - QorIQ Communications Processors

Product Description

T1024NSN7KQPA is QorIQ Communications Processors. The processors come in a full featured 23 x 23 mm package which provides scalable pin compatibility with the quad-core T1042 processor, and even the eight-core T2081 processor, for price and power scaling with a single system design.

Product Features

Two or four e5500 single-threaded cores built on Power Architecture technology

64-bit DDR3L/4 SDRAM memory controller with ECC support

High-speed peripheral interfaces: Three PCI Express 2.0 controller

Ethernet interfaces - Up to 4 x Ethernet MACs

Additional peripheral interfaces

- One serial ATA (SATA 2.0) controller

- Two high-speed USB 2.0 controllers with integrated PHYs

- Enhanced secure digital host controller (SD/MMC/eMMC)

- Enhanced serial peripheral interface

- Two I2C controllers

- Four UARTS

- Integrated flash controller supporting NAND and NOR flash memory

Target Applications

Wired and wireless branch routers

WLAN 11ac enterprise access points

Service provider WLAN access points

Unified threat management gateways

Multifunction printers

Router and switch controllers

Line card controllers

Industrial automation and computing, single board computers
