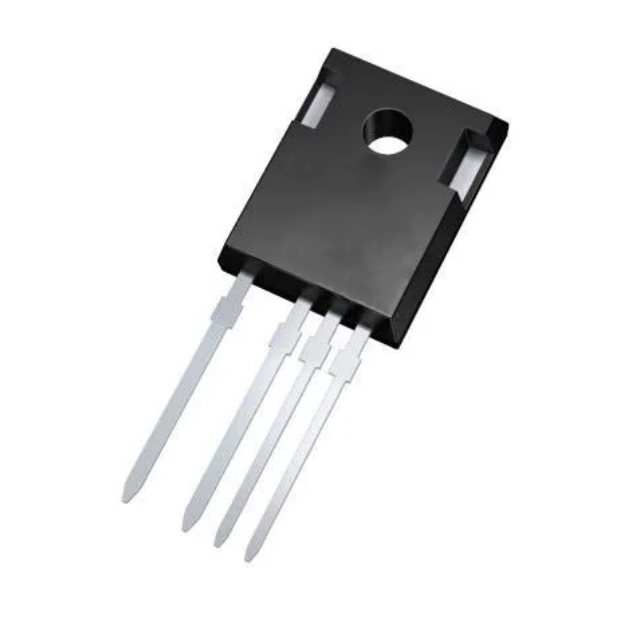

The IKZA40N65EH7 hard-switching 650 V, 40 A TRENCHSTOP™ IGBT7 H7 discretes in TO247-4 package technology have been developed to meet the needs of green and efficient energy applications, and offer significant improvements over previous generations.

Product Attributes

IGBT Type: Trench Field Cutoff

Voltage - Collector Breakdown (max): 650 V

Current - Collector (Ic) (max): 80 A

Current - Collector pulse (Icm): 160 A

Vce(on) at varying Vge, Ic (max): 1.65V @ 15V, 40A

Power - Max: 210 W

Switching Energy: 0.37 mJ (on), 0.36 mJ (off)

Input Type: Standard

Gate Charge: 81 nC

Td (on/off) value at 25°C: 13ns/134ns

Test Conditions: 400V, 40A, 12.5 Ohm, 15V

Reverse Recovery Time (trr): 49.6 ns

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Through Hole

Package/Housing: TO-247-4

Supplier Device Package: PG-TO247-4-3

Applications

● Industrial UPS

● Electric vehicle charging

● Light String Inverter

● Welding
