The STL210N4LF7AG 40 V, 120 A automotive grade N-channel power MOSFET uses STRIPFET F7 technology and an enhanced channel-gate structure to achieve extremely low on-resistance while reducing internal capacitance and gate charge for faster and more efficient switching. The device complies with the AEC-Q101 standard.

Product attribute

FET type: N channel

Technology: MOSFET (Metal oxide)

Drain-source voltage (Vdss) : 40 V

Current at 25°C - Continuous Drain (Id) : 120A (Tc)

Driving voltage (Max Rds On, min Rds On) : 4.5V, 10V

On-resistance (Max.) at different ids and Vgs: 1.6mm @ 30A, 10V

Vgs(th) (Max.) for different ids: 2.5V @ 250µA

Gate charge (Qg) at different Vgs (Max.) : 56 NC-@10 V

Vgs (Max.) : ±20V

Input capacitance (Ciss) at different Vds (Max.) : 4210 PF-@25 V

FET function: -

Power dissipation (Max.) : 150W (Tc)

Operating temperature: -55°C ~ 175°C (TJ)

Class: Automobile class

Qualification: AEC-Q101

Mounting type: Surface mount type

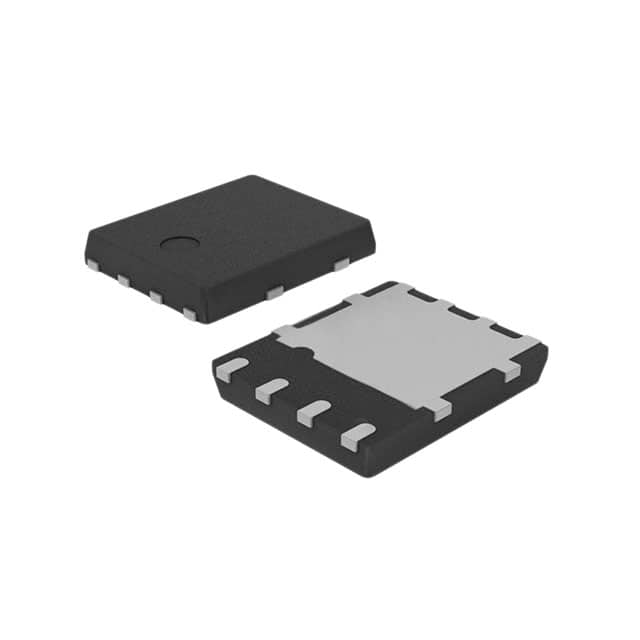

Supplier Device Package: PowerFlat™ (5x6)

Package/case: 8-PowerVDFN
