Trade Name:TLV9034QDRQ1
Brand:TI
Particular Year:23+

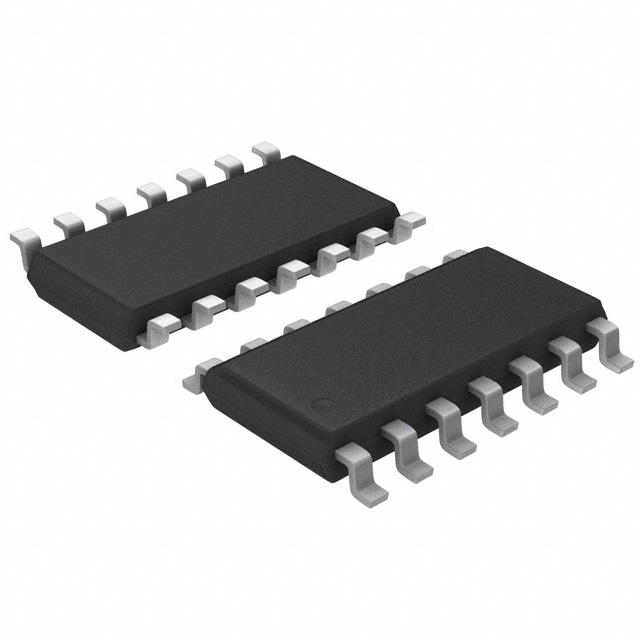

Package:14-SOIC
Delivery Date:New and Original
Stock: 1000pcs
The TLV9034QDRQ1 precision comparators are a family of dual and quad comparators. The family offers low input offset voltage, integrated power-on reset (POR) circuitry, and fault-tolerant inputs with an excellent speed-power combination and 100ns propagation delay. Operating from 1.65V to 5.5V with a quiescent supply current of 18µA per channel, the device family also includes a power-on reset (POR) feature that ensures that the outputs are in a known state until the minimum supply voltage is reached and a small period of time elapses before the outputs begin to respond to the inputs. This feature prevents output transients during system power-up and shutdown.
Product Attributes
Type: General Purpose
Number of Components: 4
Output Type: Push-Pull, Full Swing
Voltage - Supply, Single/Dual (±): 1.65V ~ 5.5V
Voltage - Input Compensation (Max): 1.5mV @ 5V
Current - Input Bias (Max): 5pA (Standard)
Current - Output (Typ): 100mA @ 5V
Current - Quiescent (Max): 30µA
CMRR, PSRR (typical): 70dB CMRR, 95dB PSRR
Propagation Delay (Max): 100ns (Standard)
Operating Temperature: -40°C ~ 125°C
Grade: Automotive Grade
Qualification: AEC-Q100
Package/Shell: 14-SOIC (0.154", 3.90mm wide)
Mounting Type: Surface Mount
Supplier Device Package: 14-SOIC
Applications
● Household appliances
● Building automation
● Factory automation and control
● Motor drives
● Infotainment and instrument panels
Model
