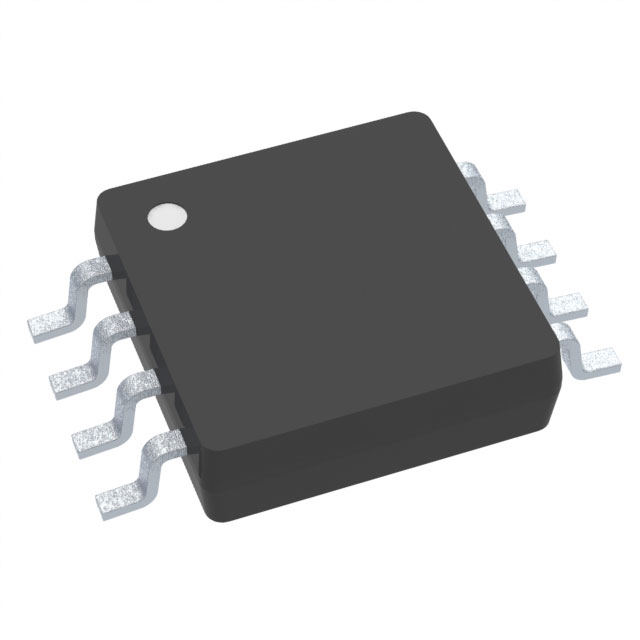

The TLV1822QDGKRQ1 dual-channel micro-power comparators are a family of 40V single, dual and quad comparators with multiple output options. The device offers rail-to-rail inputs in push-pull or open-drain output versions. With an ideal combination of speed power with 420ns propagation delay, full range 2.4V to 40V power supply supply, and 5µA quiescent supply current per channel.

Product Attributes

Type: General Purpose

Number of Components: 2

Output Type: Open Drain, Full Swing

Voltage - Supply, Single/Dual (±): 2.4V ~ 40V

Voltage - Input Compensation (Max): 3mV @ 12V

Current - Input Bias (Max): 0.001µA @ 12V

Current - Output (Typ): 30mA @ 12V

Current - Static (Max): 9µA

CMRR, PSRR (typical): 100dB PSRR

Propagation Delay (Max): 900ns (Standard)

Operating Temperature: -40°C ~ 125°C

Package/Housing: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Mounting Type: Surface Mount

Supplier Device Package: 8-VSSOP

Applications

● Appliances

● Factory automation and control

● Motor drives

● Infotainment and instrument panels
