The TLV3012AQDBVRQ1 is a push-pull output comparator. The TLV3012AQDBVRQ1 is a push-pull output comparator with an unqualified on-chip voltage reference, quiescent current of 5µA (max), input common-mode range of 200mV over the supply rails, and a single-supply voltage range of 1.8V to 5.5V. The integrated 1.242V family of voltage references provides a low temperature drift of 100ppm/°C (max), is stable under capacitive loads up to 10nF, and can provide output currents of up to 0.5mA (typical). typical) output current.

Product Attributes

Type: With Voltage Reference

Number of Components: 1

Output Type: Push-Pull, Full Swing

Voltage - Supply, Single/Dual (±): 1.8V ~ 5.5V

Voltage - Input Compensation (Max): 6mV @ 5.5V

Current - Input Bias (Max): 10pA @ 5.5V

Current - Output (Typ): 0.5mA @ 5.5V

Current - Quiescent (Max): 5µA

CMRR, PSRR (typical): 74dB CMRR, 80dB PSRR

Propagation Delay (Max): 13.5µs

Operating Temperature: -40°C ~ 125°C

Grade: Automotive Grade

Qualification: AEC-Q100

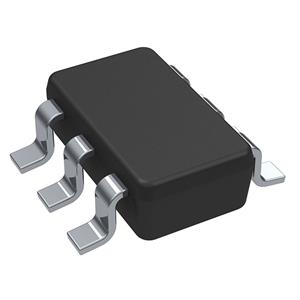

Package/Housing: SOT-23-6

Mounting Type: Surface Mount

Supplier Device Package: SOT-23-6

APPLICATIONS

● Lane departure warning

● Battery power level detection

● Instrument cluster

● Data acquisition

● Toll tagging

● System monitoring

● Asset tracking

● Oscillators

● Smoke detectors, light sensors, alarms

● Battery management systems
