The TLV3605RVKR is an 800ps high-speed comparator with LVDS output and rail-to-rail input. These comparators have these features along with an operating voltage range of 2.4V to 5.5V and a high switching frequency of 3Gbps, making them ideal for LIDAR, clock and data recovery applications, and test and measurement systems. They have a strong input overdrive performance of 350ps and are capable of detecting narrow pulse widths of only 600ps.

Product Properties

Type: General Purpose

Number of Components: 1

Output Type: Supplemental, LVDS, Full Swing

Voltage - Supply, Single/Dual (±): 2.4V ~ 5.5V

Voltage - Input Compensation (Max): 5mV @ 5V

Current - Input Bias (Max): 5µA @ 5V

Current - Static (Max): 10.5mA

CMRR, PSRR (typical): 80dB CMRR, 80dB PSRR

Propagation Delay (Max): 0.8ns

Operating Temperature: -40°C ~ 125°C (TA)

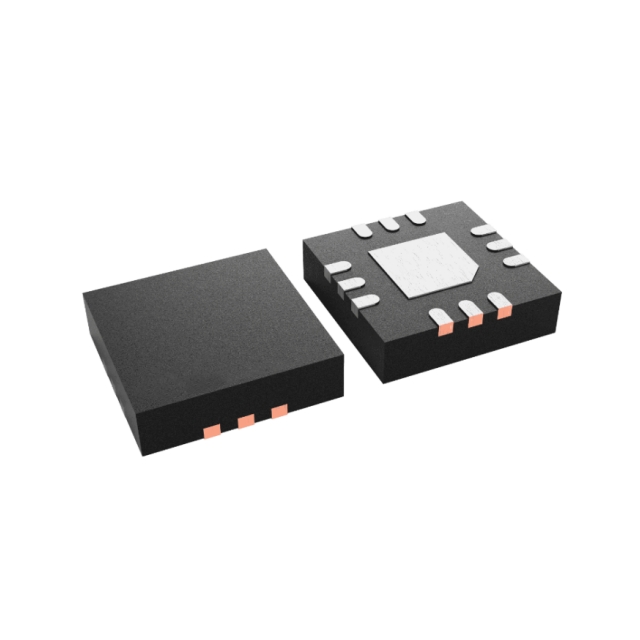

Package/Shell: 12-QFN

Mounting Type: Surface Mount

Supplier Device Package: 12-WQFN (3x3)

Applications

● LIDAR mid-range sensing

● Time-of-flight sensors

● High-speed trigger function in oscilloscopes and logic analysers

● High-speed differential line receivers

● Drone vision
