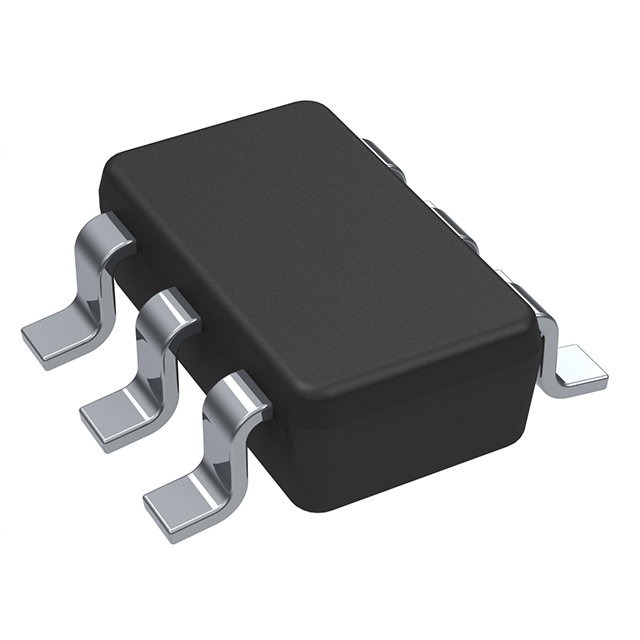

Trade Name:TLV3012BIDBVR
Brand:TI
Particular Year:23+
Package:SOT-23-6
Delivery Date:New and Original
Stock: 1000pcs
The TLV3012BIDBVR is a push-pull output comparator. Both devices feature an unqualified on-chip voltage reference with a quiescent current of 5µA (max), an input common-mode range of 200mV over the supply rails, and a single-supply voltage range of 1.8V to 5.5V. The integrated 1.242V family of voltage references provides a low temperature drift of 100ppm/°C (max), is stable under capacitive loads of up to 10nF, and can provide output currents of up to 0.5mA (typical) output current.
Product Attributes
Type: With Voltage Reference
Number of Components: 1
Output Type: Push-Pull, Full Swing
Voltage - Supply, Single/Dual (±): 1.65V ~ 5.5V
Voltage - Input Compensation (Max): 6mV @ 5.5V
Current - Input Bias (Max): 10pA @ 5.5V
Current - Output (Typ): 0.5mA @ 5.5V
Current - Quiescent (Max): 3.1µA
CMRR, PSRR (typical): 74dB CMRR, -80dB PSRR
Propagation Delay (Max): 4µs
Hysteresis: 8mV
Operating Temperature: -40°C ~ 125°C
Package/Shell: SOT-23-6
Mounting Type: Surface Mount
Supplier Device Package: SOT-23-6
Applications
● Lane departure warning
● Battery power level detection
● Instrument cluster
● Data acquisition
● Toll tagging
● System monitoring
● Asset tracking
● Oscillators
● Smoke detectors, light sensors, alarms
● Battery management systems
