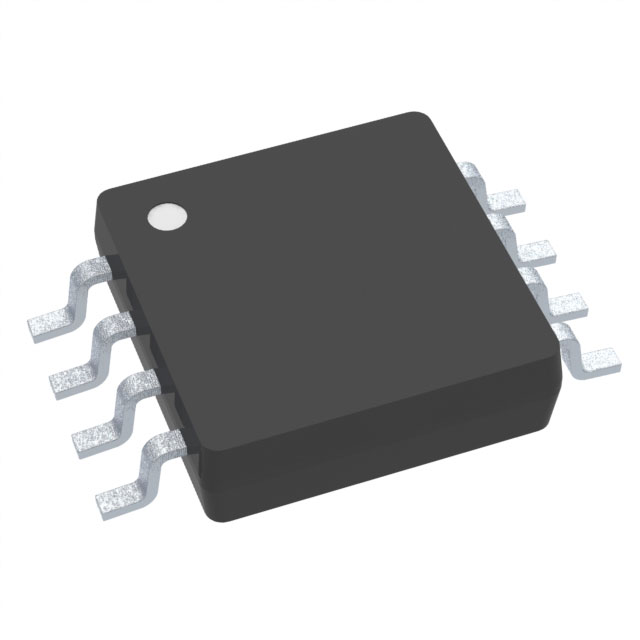

The OPA2206ADGKR Precision Operational Amplifier is the next generation of the industry-standard OPAx277 family with the added feature of input overvoltage protection (OVP). The device is a precision bipolar, e-trim op amp with a super beta input. The device uses TI's proprietary trimming technology to achieve an exceptional ±2 µ V (typical) input offset voltage' and ±0.04 µ V/ °C (typical) input offset voltage drift. Input overvoltage protection activates when the input signal exceeds the supply range and provides protection up to 40 V over either supply. This feature eliminates the need for cumbersome external circuitry and prevents damage to the amplifier.

Product Attributes

Amplifier Type: General Purpose

Number of circuits: 2

Output Type: Full Swing

Swing Rate: 4V/µs

Gain Bandwidth Product: 3.6 MHz

Current - Input Bias: 100 pA

Voltage - Input Compensation: 8 µV

Current - Supply: 220µA (x2 channels)

Current - Output/Channel: 25 mA

Voltage - Span (Min): 4.5 V

Voltage - Span (Max): 36 V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Shell: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package: 8-VSSOP

Applications

● Analogue input modules

● Hybrid modules (AI, AO, DI, and DO)

● Laboratory and field instrumentation

● Source measurement units (SMUs)

● Digital multimeters (DMM)

● Train control and management

● Group train inverters

● Data acquisition (DAQ)
