The OPA4197QPWRQ1 is part of a new generation of 36V e-trim™ operational amplifiers. The op-amps use a proprietary package-level trimming methodology that achieves out-of-tune and out-of-temperature drift in the final manufacturing step after the plastic moulding process. This methodology provides a greater reduction in the effects of inherent input transistor mismatches and errors introduced during the package moulding process.

Product Attributes

Amplifier Type: General Purpose

Number of circuits 4

Output Type: Full Sweep

Slope: 20 V/mux

Gain bandwidth: 10 MHz

Current - input compensation: 5 pA

Voltage - Input Compensation: 25 µV

Current - Supply: 1 mA (x4 channels)

Current - Output/Channel: 65 mA

Voltage - Oscillation (min): 4.5 Ω 4,5 В

Voltage - Range (max): 36 В

Operating temperature: -40°C ~ 125°C (TA)

Rating: Automotive Grade

Certification: AEC-Q100

Mounting Type: Surface Mount

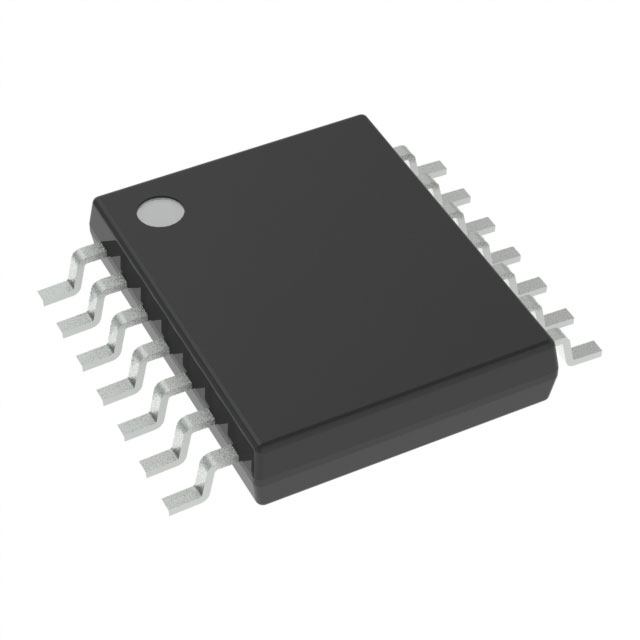

Package/Case: 14-TSSOP (0.173 inches, 4.40 mm wide)

Availability: 14-TSSOP

Applications

● Multiplexed data acquisition systems

● Test and measurement equipment

● High-resolution ADC driver amplifiers

● SAR ADC reference buffers

● Programmable logic controllers

● High-side and low-side current detection

● High-precision comparators
