The TLV1811LDCKR is a 40V single channel comparator family with multiple output options. The family offers rail-to-rail inputs with push-pull or open-drain output options. The family offers an excellent combination of speed power with a propagation delay of 420ns, a full supply voltage range of 2.4V to 40V, and a quiescent supply current of only 5µA per channel.

The devices all include a power-on reset (POR) function. This ensures that the outputs remain in a known state until the minimum supply voltage is reached, and then the outputs respond to the inputs, preventing erroneous outputs during system power-up and power-down.

Product attributes

Type: General purpose

Number of components: 2

Output Type: Push-Pull, Full Swing

Voltage - Supply, Single/Dual (±): 2.4V ~ 40V

Voltage - Input Compensation (Max): 3mV @ 12V

Current - Input Bias (Max): 0.15pA @ 12V

Current - Output (Typ): 30mA @ 12V

Current - Static (Max): 6.5µA, 9µA

CMRR, PSRR (typical): 100dB PSRR

Propagation Delay (Max): 900ns (Standard)

Operating Temperature: -40°C ~ 125°C

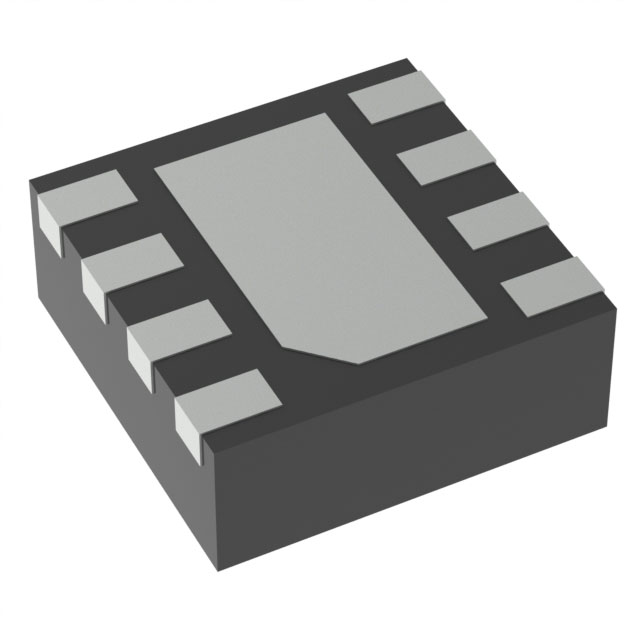

Package/Housing: 8-WFDFN Exposed Pad

Mounting Type: Surface Mount

Supplier Device Package: 8-WSON (2x2)

Applications

- Electrical Appliances

- Factory automation and control

- Motor Drives

- Infotainment systems and instrument clusters
