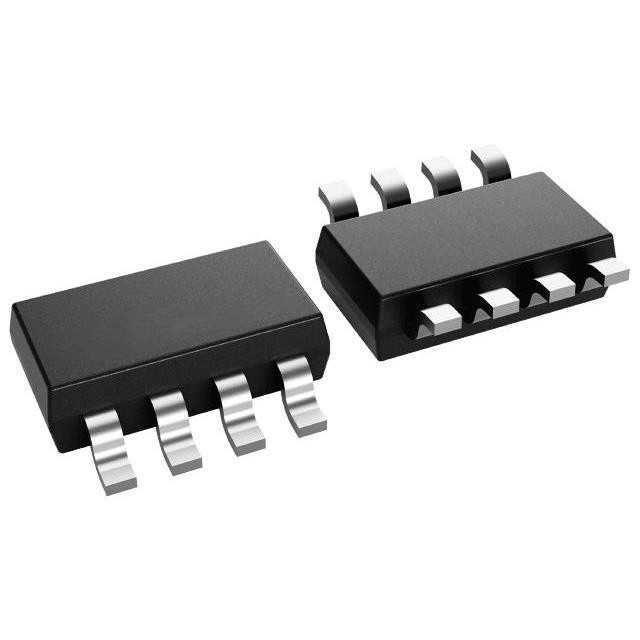

The TLV7042QDDFRQ1 is a low-voltage femto-power comparator with rail-to-rail inputs. This comparator is suitable for space-critical and power-sensitive designs such as infotainment systems, telematics, and audio host applications.

The TLV7042-Q1 combines outstanding low power consumption with high speed. With the advantage of fast response at milliampere power consumption, power-sensitive systems can monitor fault conditions and respond quickly. The comparators operate from 1.6V to 6.5V, making them compatible with 1.8V, 3V, and 5V systems.

Features

• Qualified for automotive applications

• AEC-Q100 qualified with the following results:

– Device temperature grade 1: –40°C to 125°C ambient operating temperature range

– Device HBM ESD classification level 2

– Device CDM ESD classification level C5

• Wide supply voltage range of 1.6 V to 6.5 V

• Quiescent supply current of 315 nA

• Low propagation delay of 3 µs

• Internal hysteresis of 6.5 mV

• Rail-to-rail common-mode input voltage

• Internal Power-On-Reset provides a known startup condition

• No phase reversal for overdriven inputs

• Push-pull output (TLV703x-Q1)

• Open-drain output (TLV704x-Q1)

• –40°C to 125°C Operating temperature

Applications

• Telematics eCall

• Automotive head unit

• Instrument cluster

• Audio amplifier

• On-board (OBC) & wireless chargers
