Trade Name:TLV1821QDBVRQ1
Brand:TI
Particular Year:23+
Package:SOT-23-5
Delivery Date:New and Original
Stock: 1150pcs

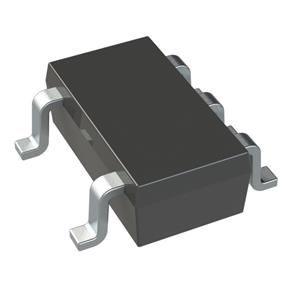

The TLV1821QDBVRQ1 is an automotive grade 40V single channel micro-power comparator. The device is available with rail-to-rail inputs in push-pull or open-drain output versions.
Features
Automotive Compliance
The following features are compliant with AEC-Q100:
Device Temperature Class 1: -40°C to 125°C ambient operating temperature range
Device HBM ESD Classification Level 2
Device CDM ESD Classification C3
Wide supply voltage range of 2.4V to 40V
Low quiescent current of 5µA per channel
Rail-to-rail inputs
Power-on reset (POR) with known activation
Low input offset voltage 500µV
420ns typical propagation delay
Product Properties
Type: General Purpose
Number of Components: 1
Output Type: Open Drain, Full Swing
Voltage - Supply, Single/Dual (±): 2.4V ~ 40V
Voltage - Input Compensation (Max): 3mV @ 12V
Current - Input Bias (Max): 0.15pA (Typ)
Current - Output (Typ): 30mA @ 12V
Current - Static (Max): 9µA
CMRR, PSRR (Typ): 100dB PSRR
Propagation Delay (Max): 900ns (Standard)
Operating Temperature: -40°C ~ 125°C
Grade: Automotive Grade
Qualification: AEC-Q100
Package/Housing: SC-74A, SOT-753
Mounting Type: Surface Mount
Supplier Device Package: SOT-23-5
Model
Brand
Package
Quantity
Describe
TI
SOT-23-5
1000
Automotive low-voltage single comparator with open-drain output and alternate pinout
