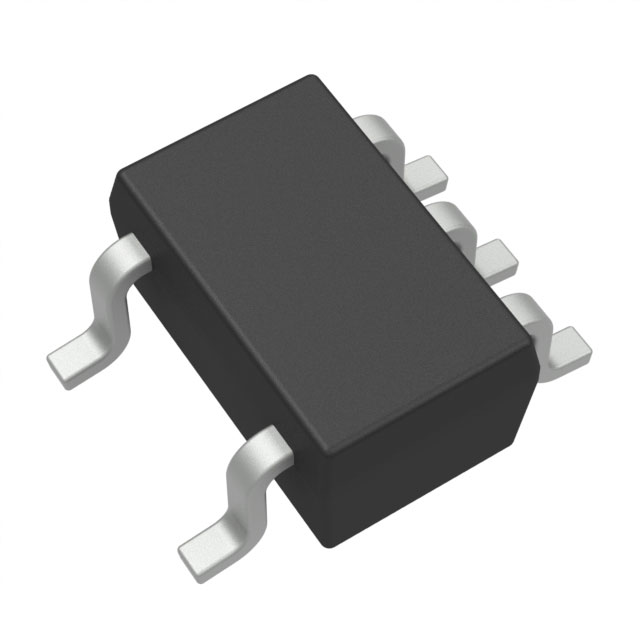

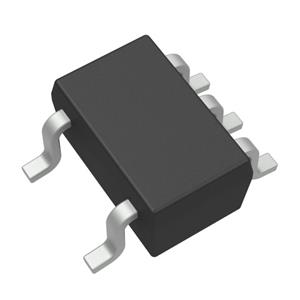

The TLV1811DCKR is a 40V single channel comparator family with multiple output options. The family offers rail-to-rail inputs with push-pull or open-drain output options. The family offers an excellent combination of speed power with a propagation delay of 420ns, a full supply voltage range of 2.4V to 40V, and a quiescent supply current of only 5µA per channel.

The devices all include a power-on reset (POR) function. This ensures that the outputs remain in a known state until the minimum supply voltage is reached, and then the outputs respond to the inputs, preventing erroneous outputs during system power-up and power-down.

Features

- 2.4V to 40V wide supply voltage range

- Rail-to-rail input

- Power-On Reset (POR) with Known Activation

- Low input offset voltage 500µV

- 420ns typical propagation delay

- Low quiescent current of 5µA per channel

- Low input bias current 150fA

- Open-drain output option (TLV182x)

- Push-pull output option (TLV181x)

- Full temperature range of -40°C to +125°C

- 2kV ESD protection

Applications

- Electrical Appliances

- Factory automation and control

- Motor Drives

- Infotainment systems and instrument clusters
