The TMP451JQDQFRQ1 is a high accuracy, low power remote temperature sensor monitor with a built-in local temperature sensor. These remote temperature sensors typically use low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes, which are components of microprocessors, microcontrollers, or FPGAs. The temperature representation is a 12-bit digital code with a resolution of 0.0625°C. For both local and remote sensors, the temperature accuracy is ±1°C (maximum) over the typical operating range. The two-wire serial port accepts the SMBus communication protocol.

Product Characteristics

Sensor Type: Digital, Local/Remote

Sensor Temperature - Local: -40°C ~ 125°C

Response Temperature - Remote: -64°C ~ 191°C

Output Type: SMBus

Voltage - Power: 1.7V ~ 3.6V

Resolution: 12 b

Functions: Single Trigger, Output Switch, Programmable Limit, Trip Mode

Accuracy - Maximum (Minimum): ±1°C (±2°C)

Test Conditions: 0°C ~ 70°C (-40°C ~ 125°C)

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Grade: Automotive Grade

Certification: AEC-Q100

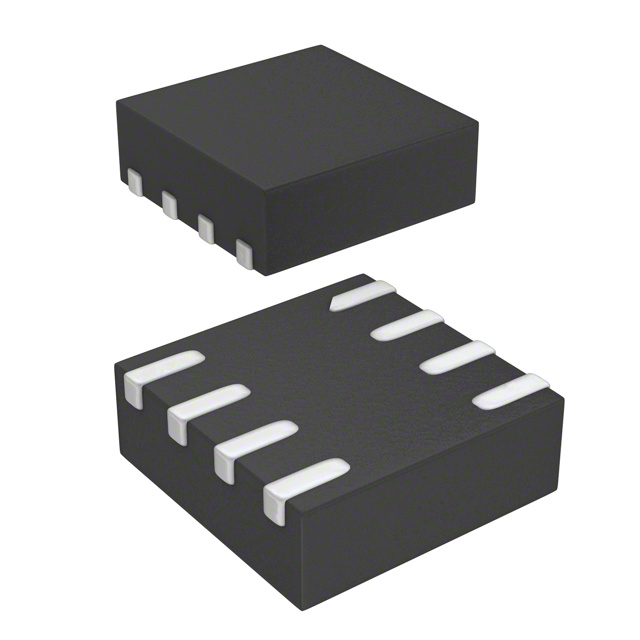

Package/Housing: 8-WFDFN

Power Supply Included: 8-WSON (2x2)

Applications

● Processor and FPGA temperature monitoring

● Smartphones and tablets

● Servers, desktops and laptops

● Telecommunications equipment and storage area networks (SANs)
