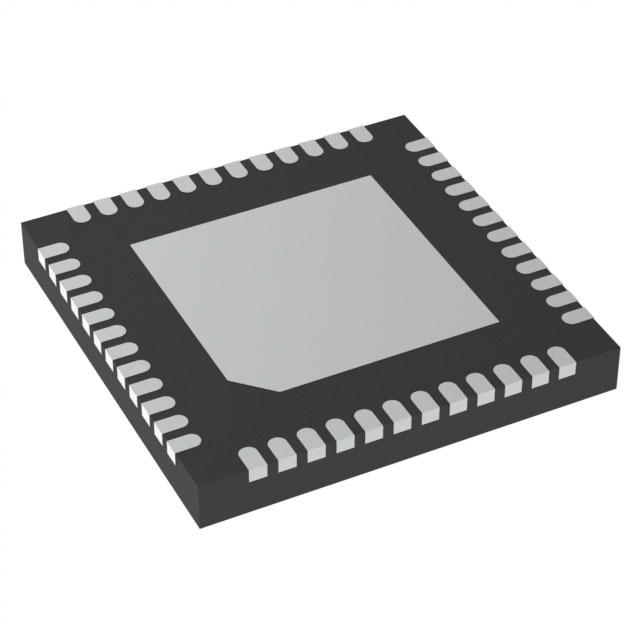

For picture reference, please see the specifications
< >

Commodity Model:MFS8623BMDA0ES

Trade Name:MFS8623BMDA0ES

Data Manual:MFS8623BMDA0ES.pdf

Brand:NXP

Particular Year:23+

Package:HVQFN-48

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
NXP
Model
MFS8623BMDA0ES
Package
HVQFN-48
Describe
Safety System Basis Chip For Domain Controller, Fit For ASIL D

Product Description

The FS86 device family is software compatible with the FS84/85 family, extending power capability, safety integration and system scalability for domain controller applications to meet multi-MCU requirements in ADAS and electrification.


The FS86 includes multiple switch mode and linear regulators with fail-safe outputs for enhanced safety features. This makes it a complete part of a safety-oriented system to ASIL B/D safety integrity level.


MFS8623BMDA0ES Product Attributes:

Product Category: Speciality Power Management (PMIC)

Series: FS86

Type: Voltage Regulator, Multiple Output

Mounting Style: SMD/SMT

Package / Case: HPQFN-48

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 125 C

Qualification: AEC-Q100

Applications: Battery Network Applications, Domain Controllers

Operating supply voltage: 4.5 V to 36 V

Products: SMPSs and LDOs

Factory Package Quantity: 260


Functions

Power Management

DC input voltage up to 60 V

Up to 15A high voltage step-down with electronic fuse protection

Multiple switch mode regulators as well as LDO regulators and boosts

Low Power Off Mode (LPOFF) with very low sleep current (10uA)

System Solutions

Enhanced leader/follower power-up sequence management via XFAILB pins

2 input pins for wake-up detection, 3.3V compatibility and battery voltage sensing capability

Systems that save space and reduce complexity: AMUX

External pre-regulator short circuit protection (BAT_SW)

Power supply, sequencing and specific functions can be programmed from one-time programmable (OTP) memory

Optional 10ms RSTB release delay during power-up to meet partial MCU compliance

Device control via 32-bit I2C interface with 8-bit CRC

Electromagnetic compatibility (EMC) optimisation techniques for switching regulators, including spread spectrum, slew rate control and manual frequency tuning

Functional safety

Up to 10 voltage monitoring with +/-1% accuracy

Scalable product portfolio covering Automotive Safety Integrity Levels (ASIL) B to D

Enables potential fault monitoring while the system is running: ABIST on demand

Dedicated interface for microcontroller monitoring

Simple watchdog and challenger watchdog functionality

Safe outputs with potential fault detection mechanism (RSTB, FS0B)

Configuration and support

QFN48 pins with exposed pads for optimised thermal management

Permanent device customisation via one-time programming (OTP) memory

Temporary OTP emulation mode for system development and evaluation
