The AM2434BSDFHIALXR is a new industrial-grade addition to the Sitara high-performance microcontroller family. It is built for industrial applications that require a combination of real-time communication and processing, such as motor drives and remote I/O modules. Scalable performance is provided by up to four Cortex-R5F MCUs, one Cortex-M4F and two instances of Sitara's TSN-enabled gigabit PRU_ICSSG.

Product Attributes

Core Processor: ARM® Cortex®-M4F, ARM® Cortex®-R5F

Core specification: 32-bit, 5-core

Speed: 400MHz, 800MHz

Connectivity: CANbus, Ethernet, I2C, MMC/SDIO, QSPI, SPI, UART/USART, USB

Peripherals: AES, DMA, POR, PWM, SHA, TRNG, WDT

Number of I/O: 148

Program memory capacity: 256KB (256K x 8)

Program Memory Type: Tightly Coupled Memory (TCM)

RAM Size: 256K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 1.89V, 3.135V ~ 3.465V

Data Converter: A/D 8x10b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

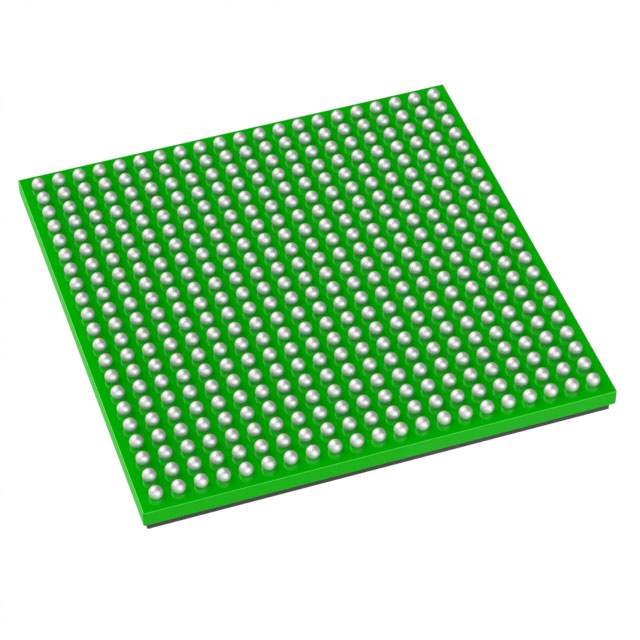

Package/Housing: 293-VFBGA, FCCSPBGA

Supplier Device Package: 293-FC/CSP (11x11)

Applications

● Programmable Logic Controllers (PLC)

● Motor drives

● Remote I/O

● Industrial robots

● Condition monitoring gateways

● Communication modules

● Field transmitters

● Test and Measurement

● General-purpose controllers
