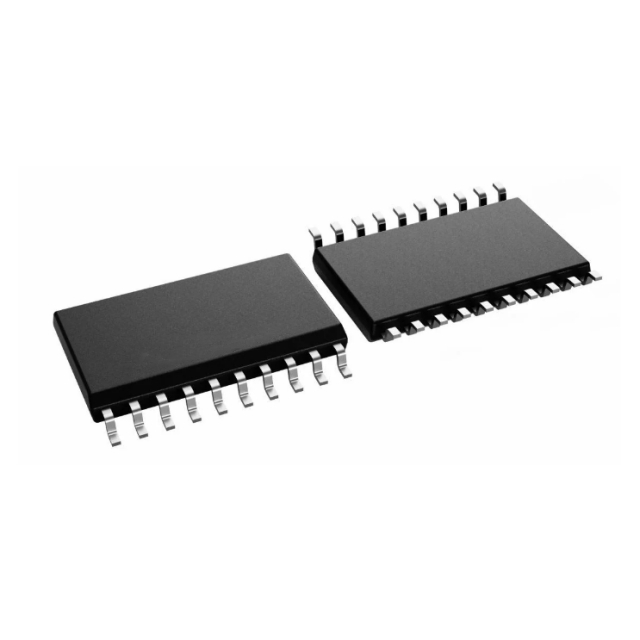

The MSPM0L1344TDGS20R microcontrollers (MCUs) are part of MSP's highly integrated family of ultra-low-power 32-bit MSPM0 MCUs based on the enhanced Arm Cortex-M0+ core platform and operating at up to 32 MHz. These low-cost MCUs offer high-performance analogue peripheral integration, support an operating temperature range of -40°C to 125°C, and operate from a 1.62V to 3.6V supply. These low-cost MCUs offer high-performance analogue peripheral integration, support an operating temperature range of -40°C to 125°C, and operate from a supply voltage of 1.62V to 3.6V. Available with up to 64KB of embedded Flash program memory and up to 4KB of SRAM, these MCUs include a high-speed on-chip oscillator with ±1.2% accuracy, eliminating the need for an external crystal.

Features

● Kernel

● Arm 32-bit Cortex-M0+ processor with up to 32 MHz frequency

● Performance Features

● Operating temperature range: -40°C to 125°C

● Wide supply voltage range: 1.62V to 3.6V

● Up to 64KB of Flash memory

● Up to 4KB of SRAM

● High-performance analogue peripherals

● 12-bit analogue-to-digital converter (ADC), 1.68 MS/sec, up to 10 external channels.

● Configurable 1.4 V or 2.5 V internal ADC voltage reference (VREF)

● Two zero-drift operational amplifiers (OPAs) with zero cross-talk

● 0.5 µV/°C chopping drift

● Input bias current 6 pA (1)

● Built-in programmable gain stage (1-32x)

● A general purpose amplifier (GPAMP)

● A high-speed comparator (COMP) with an 8-bit DAC reference

● 32 ns propagation delay

● Low-power mode down to <1 µA

Applications

● Battery charging and management

● Power supply and power delivery

● Personal electronics

● Building and fire safety

● Networked peripherals and printers

● Grid infrastructure

● Smart metering

● Communication modules

● Medical and healthcare

● Lighting
