The TMS320F28034PAGS microcontrollers combine the performance of the C28x core and Control Law Accelerator (CLA) with highly integrated control peripherals in a low pin count device. The code of this family of devices is compatible with legacy C28x-based code, while providing a high level of analogue integration.

 An internal voltage regulator enables single-supply-rail operation, and the HRPWM module has been enhanced to enable dual-edge control (FM). An analogue comparator with a 10-bit internal reference has been added for direct routing to control the PWM outputs, and the ADC converts over a fixed full-scale range of 0V to 3.3V, supporting proportional operations with the VREFHI/VREFLO reference. the ADC interface has been optimised for low overhead and latency.

Specifications

Core processor: C28x

Core specification: 32-bit single-core

Speed: 60MHz

Connectivity: CANbus, I2C, LINbus, SCI, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, POR, PWM, WDT

Number of I/O: 33

Program memory capacity: 128KB (64K x 16)

Program memory type: Flash

RAM Size: 10K x 16

Voltage - Supply (Vcc/Vdd): 1.71V ~ 1.995V

Data Converter: A/D 14x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

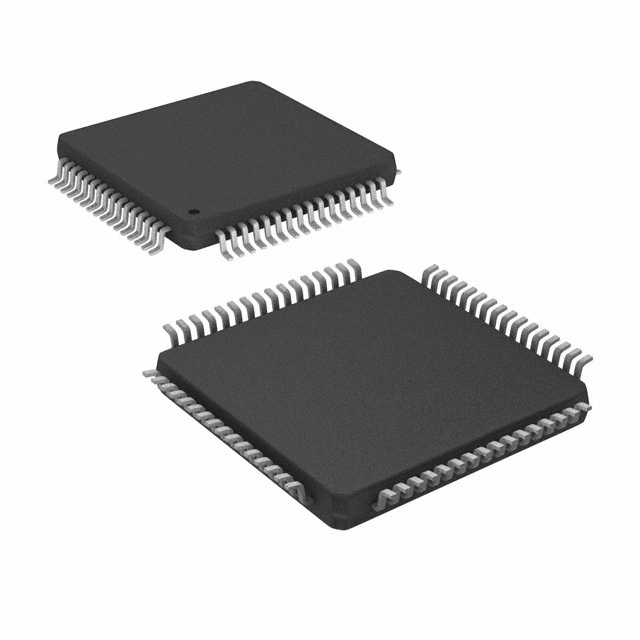

Package/Housing: 64-TQFP

Supplier Device Package: 64-TQFP (10x10)

APPLICATIONS

- Air conditioner outdoor units

- Drive control for automatic lift door openers and closers

- DC/DC converters

- Inverter and motor control

- On-board chargers (OBC) and wireless chargers

- Automatic sorting equipment

- Textile machines

- Welding Machines

- AC Charging Stations

- DC Charging Stations

- Electric Vehicle Charging Station Power Module

- Vehicle Wireless Charging Modules

- Energy Storage Power Conversion Systems (PCS)

- Microinverters

- Solar Power Optimiser

- String Inverters

- AC Drive Control Modules

- Linear Motor Segment Controllers

- Servo Drive Power Stage Modules

- AC Input BLDC Motor Driver

- DC Input BLDC Motor Drivers

- Industrial AC-DC

- Three-Phase UPS

- Commercial Network and Server PSUs

- Commercial Communications Power Rectifiers
