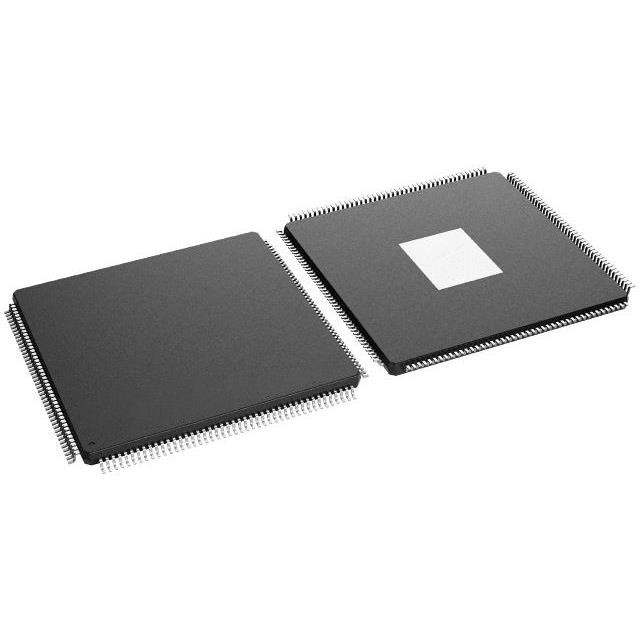

The F28386SPTPQR C2000 32-bit microcontrollers (MCUs) are powerful 32-bit floating-point MCUs designed for advanced closed-loop control applications. Support for the dual-core C28x architecture and a new connection manager eases the burden of critical communication tasks and significantly improves system performance. With integrated analogue and control peripherals, as well as advanced connectivity peripherals such as EtherCAT and Ethernet, designers can also integrate real-time control and real-time communication architectures, reducing the need for multi-controller systems.

Product Attributes

Product Category: 32-bit Microcontrollers - MCUs

Family: TMS320F28386S-Q1

Mounting Style: SMD/SMT

Package / Case: HLQFP-176

Core: C28x

Program memory size: 512 kB

Data RAM size: 172 kB

Data bus width: 32 bit

ADC resolution: 4 x 12 bit/16 bit

Maximum clock frequency: 200 MHz

Number of inputs/outputs: 97 I/Os

Supply voltage - min: 3.14 V

Supply voltage - max: 3.47 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Analogue supply voltage: 3.14 V to 3.47 V

DAC resolution: 12 bit

Data Ram type: ASRAM, SDRAM

Data Rom Type: EEPROM

Development Kit: TMDSCNCD28388D

Interface Type: I2C, SPI, UART, USB

Humidity Sensitivity: Yes

Number of ADC Channels: 4 Channel

Number of Timers/Counters: 3 x 32 bit

Processor Family: TMS320F2838x

Product: MCUs

Product Type: 32-bit Microcontrollers - MCUs

Programme memory type: Flash

Factory Package Quantity: 200

Sub Category: Microcontrollers - MCUs

Trade Name: C2000

Watchdog Timer: Watchdog Timer, Windowe
