The P3T2030DUKAZ sensor can be configured for different operating conditions. The device can be set to normal mode, periodically monitoring the ambient temperature or shutdown mode to minimise power consumption. The temperature register always stores 12-bit2 supplementary data (2 bytes) with a temperature resolution of 0.0625°C. It also supports 8-bit (MSB) reads with a temperature resolution of 1°C.

Features

● I3C and I2C interfaces

● Power supply range: 1.4V to 1.98V

● Provides 8 different device addresses (A to H)

● Programmable under-temperature and over-temperature registers

● 12-bit resolution (0.0625°C), supports 8-bit readout

● Low quiescent supply current: 6µA (typical)

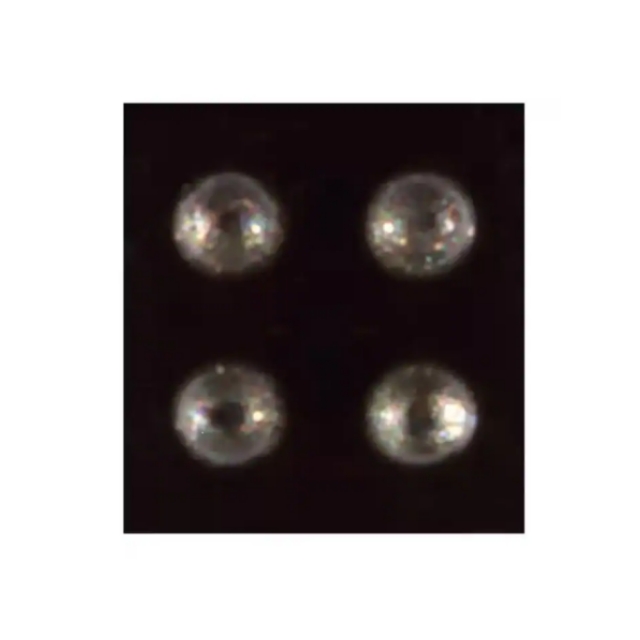

● Wafer-level chip size package, 4-terminal, 0.4mm pin pitch, 0.91mm x 0.855mm x 0.455mm body

Applications

● Portable devices

● Internet of Things

● Solid State Drives (SSD)

● Industrial controllers

● Servers

● PC/Laptop
