The P3T2030CUKAZ is a temperature-to-digital converter with a temperature range of -40 °C to +125 °C. It uses an on-chip bandgap temperature sensor and an A-D converter with over-temperature detection. It uses an on-chip bandgap temperature sensor and A-D conversion with over-temperature detection. The device contains several data registers: Configuration registers store device settings such as the device temperature register (Temp) which stores digital temperature readings. The controller communicates via a two-wire serial I3C/I2C bus interface. It can be configured for different operating conditions. The Temp register always stores 12-bit binary data (2 bytes) with a temperature resolution of 0.0625 °C. It also allows 8-bit (MSByte) readings with a temperature resolution of 1 °C. The Temp register can be configured for different operating conditions.

Product Properties

Sensor Type: Digital

Sensing Temperature - Local: -40°C ~ 125°C

Output Type: I²C, I3C

Voltage - Supply: 1.4V ~ 1.98V

Resolution: 12 b

Features: Standby Mode, Shutdown Mode, Single Trigger, Programmable Limits

Accuracy - Maximum (Minimum): ±2%

Test Conditions: 0°C ~ 85°C (-40°C ~ 125°C)

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

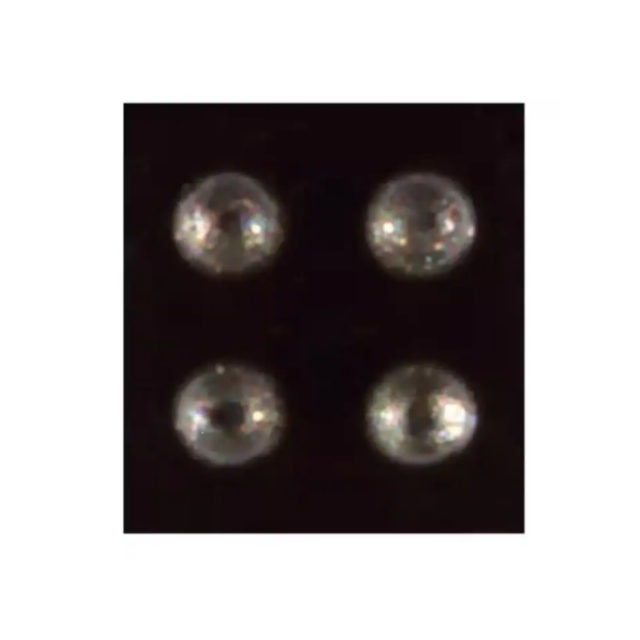

Package/Housing: 4-UFBGA, WLCSP

Supplier Device Package: 4-WLCSP (0.83x0.78)

Applications

● Portable devices

● Internet of Things

● Solid State Drives (SSD)

● Industrial controllers

● Servers

● PC/Laptop
