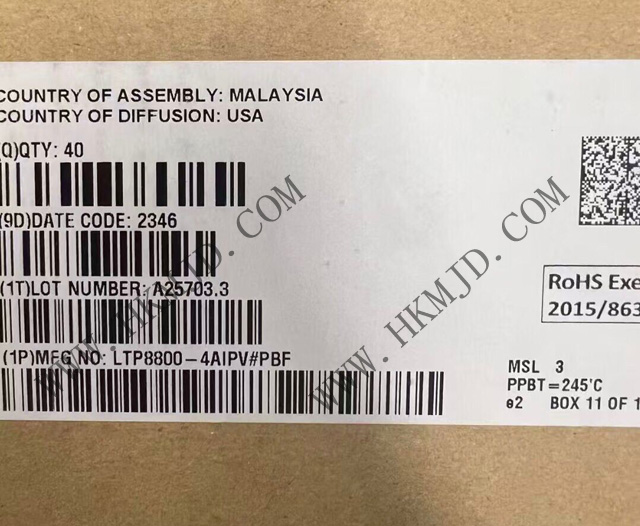

For picture reference, please see the specifications
< >

Commodity Model:LTP8800-4AIPV

Trade Name:µModule Buck Regulators

Data Manual:LTP8800-4AIPV.pdf

Brand:ADI

Particular Year:23+

Package:22-SMD

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTP8800-4AIPV
Package
22-SMD
Describe
150A DC/DC µModule Regulator with PMBus Interface

Product Description

The LTP8800-4AIPV is a 150A step-down μModule regulator that provides microprocessor core voltage through a 54V power distribution architecture. It allows remote configuration and telemetry monitoring of power management parameters via PMBus, an open standard I2C-based digital interface protocol. Contains a programmable CNC with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformers, inductors, and ancillary components. Its high level of integration fully reduces component count and shortens design time while increasing flexibility and power density. A resonant switching architecture is utilised to eliminate high-voltage switching losses, thereby maintaining high efficiency at high conversion rates.


Characteristics

● High efficiency at high frequencies

● 80.0% efficiency (1MHz, 54 VIN to 0.8 VOUT)

● PMBus-compliant I2C serial interface

● Monitoring of voltage, current, temperature, and faults

● Internal EEPROM fault logging

● Digitally programmable control loop

● Programmed voltage, current limit, soft start/soft stop, frequency, sync and phase, power good, warnings and faults

● Wide input voltage range: 45V to 65V

● Output voltage range: 0.5V to 1.1V

● Optimised for 45V to 65VIN to 0.8VOUT

● Maximum DC output error of ±0.5% for differential remote voltage detection

● Current readback accuracy: ±3%

● Paralleling and equalising multiple μModule® ICs

● 22mm × 24mm × 6.7mm surface mount package


APPLICATIONS

● High-current distributed power systems

● Servers, networking and storage devices

● Intelligent energy-saving power regulation

Associated Products

Model

Brand

Package

Quantity

Describe

LTM8052EY

ADI

LGA-81

4000

36VIN, 5A, μModule Buck Regulator, LGA-81

LTM8052EV

ADI

LGA-81

4000

36VIN, 5A, μModule Buck Regulator, LGA-81

LTM8052IV

ADI

LGA-81

4000

36VIN, 5A, μModule Buck Regulator, LGA-81

LTM8052AMPV

ADI

LGA-81

4000

36VIN, 5A, μModule Buck Regulator, LGA-81

LTM8052AIY

ADI

LGA-81

4000

36VIN, 5A, μModule Buck Regulator, LGA-81

LTM8052AIV

ADI

LGA-81

4000

36VIN, 5A, μModule Buck Regulator, LGA-81

LTM8052AEV

ADI

LGA-81

4000

36VIN, 5A, μModule Buck Regulator, LGA-81

LTM8020IV

ADI

LGA-21

5000

200mA, 36V DC/DC μModule Buck Regulator, LGA-21

LTM8020EV

ADI

LGA-21

5000

200mA, 36V DC/DC μModule Buck Regulator, LGA-21

LTM8029IY

ADI

BGA-35

5000

36VIN, 600mA buck-type μModule converter, BGA-35
