The LTC3256EMSE is a wide input range switched capacitor step-down DC/DC converter that produces two regulated outputs: a 5V output via a direct connection to the charge pump output, and a 3.3V output via a low dropout (LDO) connection. The device can provide up to 350mA total output current. At 12V VIN and maximum load conditions on both outputs, power consumption is reduced by more than 2W compared to dual LDO regulators. Power consumption is reduced by more than 2W compared to a dual LDO regulator solution. Efficiency is maximised by running the charge pump in 2:1 mode.

FEATURES

● Input voltage range of 5.5V to 38V

● Independently enabled 5V and 3.3V fixed outputs

● 5V output: 100mA maximum

● 3.3V LDO output: 250mA max.

● Multimode buck charge pump (2:1, 1:1) with automatic mode switching

● Low quiescent current

● 20μA at regulated voltage for both outputs (no load)

● 0.5μA at shutdown

● Designed for diagnostic coverage of the following systems

● 1.1V reference output for system diagnostics

● Power-on reset and watchdog controller with adjustable timing

● Overcurrent fault protection on each output

● Over-temperature protection

● 150°C maximum operating junction temperature

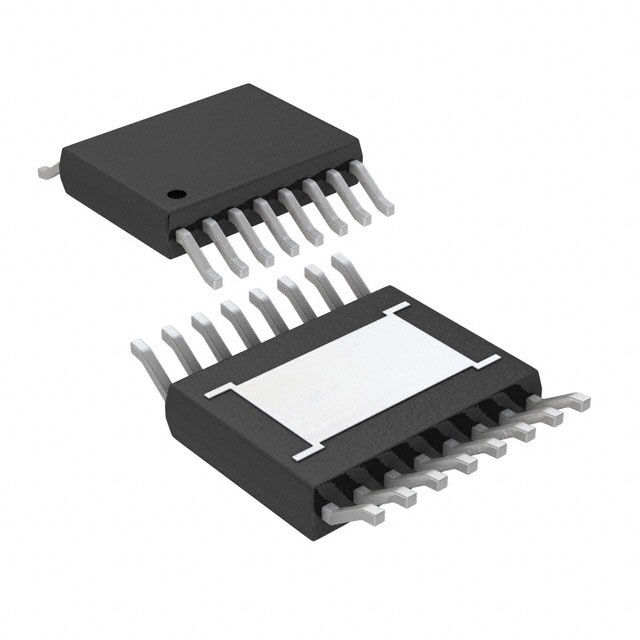

● Thermally enhanced 16-pin MSOP package

Applications

● Automotive ECU/CAN transceiver power supplies

● Industrial/telecom housekeeping power supplies

● Low-power 12V to 5V and 3.3V conversion
