The R7FA2E1A92DFK microcontroller is the entry-level single-chip microcontroller of the RA family, based on the 48MHz Arm® Cortex-M23 core, with 128KB of code flash memory and 16kB of SRAM. The product uses optimized manufacturing process and low power process technology, which is the industry's first-class ultra-low power microcontroller. The RA2E1 MCU is suitable for battery-powered and space-constrained applications, as well as other systems requiring high performance and low power consumption.

Technical parameter

Core processor: ARM® Cortex®-M23

Kernel specification: 32-bit single-core

Speed: 48MHz

Connectivity: I²C, SmartCard, SPI, UART/USART

Peripheral: AES, DMA, LVD, POR, PWM, Temp Sensor, TRNG, WDT

Number of I/ OS: 53

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: 4K x 8

RAM size: 16K x 8

Voltage - power supply (Vcc/Vdd) : 1.6V ~ 5.5V

Data converter: A/D 13x12b SAR

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

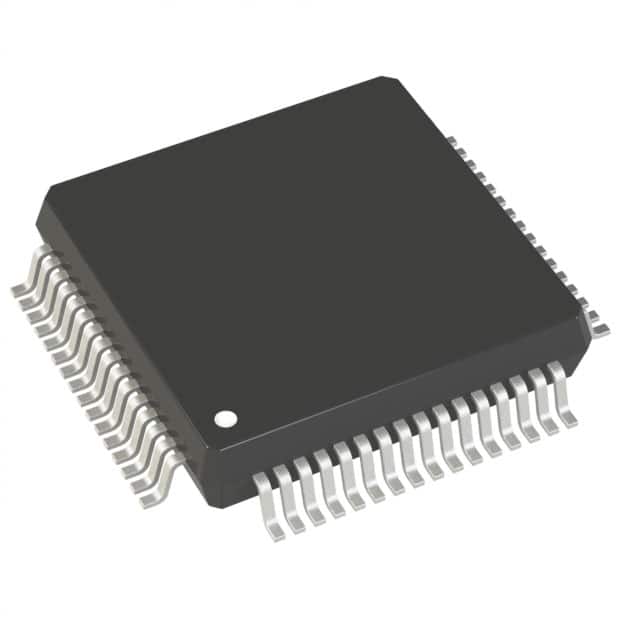

Package/shell: 64-LQFP

Supplier Device Package: 64-LQFP (14x14)
