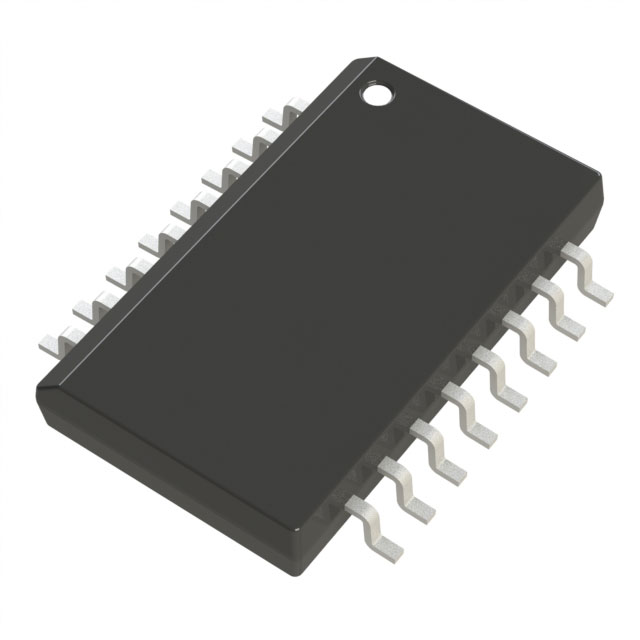

The ADM3056EBRIZ is a 5.7 kV rms isolated controller area network (CAN) physical layer transceiver. The ADM3056E fully meets the CAN flexible data rate (CAN FD) CAN FD ISO 11898- 2:2016 requirements and is further capable of supporting data rates as high as 12 Mbps.

The device employs Analog Devices, Inc., iCoupler® technology to combine a highly robust 3-channel isolator and a CAN transceiver into a single SOIC, surface-mount package. The ADM3056E provides galvanic isolation between the CAN controller and physical layer bus.

Features

5.7 kV rms (8000 VPEAK) signal isolated CAN transceiver

1.7 V to 5.5 V supply range for VDD1

4.5 V to 5.5 V supply range for VDD2

ISO 11898-2:2016 compliant CAN FD

Data rates up to 12 Mbps for CAN FD

Low loop propagation delay of 150 ns maximum

Extended common-mode range of ±25 V

Bus fault protection (CANH, CANL) of ±40 V

Low power standby supporting remote wake request

Extra isolated signal for control (for example, termination switches)

Slope control for reduced EMI

Safety and regulatory approvals (pending)

VDE Certificate of Conformity, VDE V 0884-10

VIORM = 849 VPEAK

VIOSM = 8000 VPEAK (test: VPEAK = 12.8 kV)

UL: 5700 V rms for 1 minute per UL 1577

CSA Component Acceptance 5A at 5 kV rms

IEC 60950, IEC 61010

8.3 mm creepage/clearance with 16-lead SOIC package

High common-mode transient immunity: ≥75 kV/μs

Industrial temperature range: −40°C to +125°C

Applications

CANOpen, DeviceNet, and other CAN bus implementations

Solar inverters and battery management

Motor and process control

Industrial automation

Transport and infrastructure
