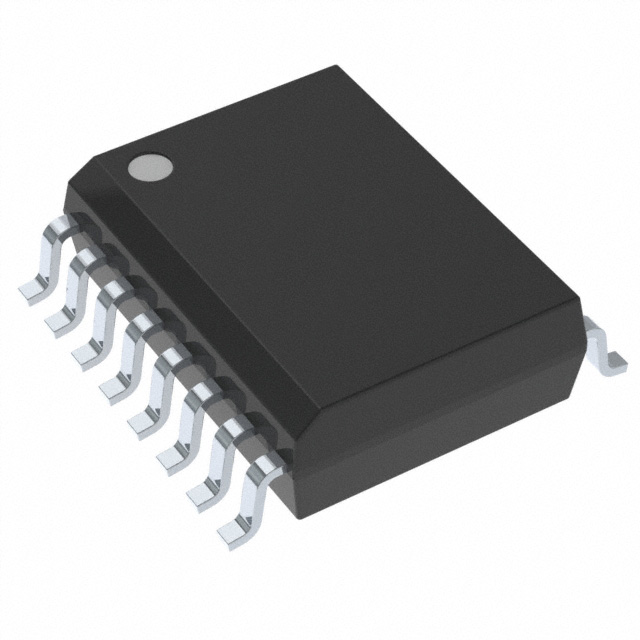

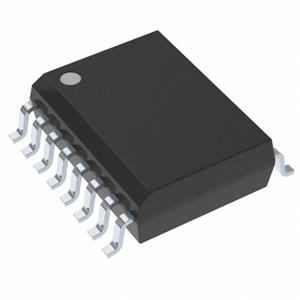

The ADM3054WBRWZ is a 5 kV rms signal-isolated Controller Area Network (CAN) physical layer transceiver that complies with ISO 11898.

The device uses ADI's iCoupler® technology to integrate a three-channel isolator and CAN transceiver in a single package. The logic side of the device is powered by a single 3.3 V or 5 V supply on VDD1 and the bus side is powered by a single 5 V supply on VDD2. A power loss condition at the bus side (VDD2) can be detected by the integrated VDD2SENSE signal.

The ADM3054WBRWZ creates an isolated interface between the CAN protocol controller and the physical layer bus, which can operate at data rates up to 1 Mbps.

The device's bus pins (CANH and CANL) have integrated protection against shorting to power or ground in 24 V systems.

The device has current limiting and thermal shutdown features to prevent output shorts and bus shorts to ground or power pins. Rated over the industrial temperature range, it is available in a 16-pin, wide-body SOIC package.

Product Features

5 kV rms Signal Isolated CAN Transceivers

Operating voltage (VDD1): 5 V or 3.3 V

Operating voltage (VDD2): 5 V

VDD2SENSE Used to detect if VDD2 is de-energised

ISO 11898 compliant

Data rates up to 1 Mbps

CANH and CANL have integrated short-circuit protection to prevent short-circuiting to power or ground in 24 V systems

Unpowered nodes do not interfere with the bus

Bus supports 110 or more nodes

Thermal shutdown protection

High common mode transient immunity: >25 kV/μs

Safety and regulatory approvals

UL listed

5000 V rms for 1 minute according to UL 1577

Certificate of conformity to VDE standards

DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12

VIORM = 846 V peak

Industrial temperature range: -40°C to +125°C

16-pin wide-body SOIC package

Certified for automotive applications

Applications

CAN data buses

Industrial field networks
