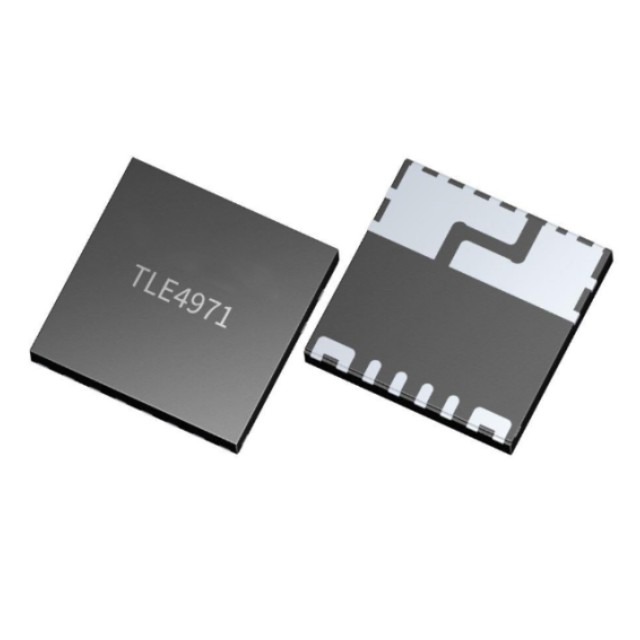

TLE4971A025T5E0001 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and two fast over-current detection outputs. Infineon's well-established and robust monolithic Hall technology enables accurate and highly linear measurement of currents with a full scale up to ±120A. The sensor is equipped with internal selfdiagnostic feature. Typical applications are Onboard Chargers as well as any kind of Drives. The differential measurement principle allows great stray field suppression for operation in harsh environments. The sensor is shipped as a fully calibrated product without requiring any customer end-of-line calibration. All user-programmable parameters such as OCD thresholds, blanking times and output configuration modes are stored in an embedded EEPROM memory. Equipped with LTI-feature (Lead Tip Inspection) for easy end of line solder quality check.

Features & Benefits

• Integrated current rail with 220µΩ insertion resistance enables ultra-low power loss

• Less than 1nH parasitic inductance

• Smallest form factor, 8x8mm, Lead Tip Inspection

• High accurate, scalable, DC & AC current sensing

• 210kHz bandwidth for wide range of applications

• Very low sensitivity error over temperature

• Galvanic functional isolation up to 1150V peak VIORM

• Documentation according ISO26262 available

Target Applications

The TLE4971 is suitable for AC as well as DC current measurement applications:

• On-Board Charger (OBC)

• Drives / Servo / Motor Control / Inverter / eScooter / eBike / LEV / EESM (externally excited synchronous machine)

• Current monitoring

• Overload and over-current detection
