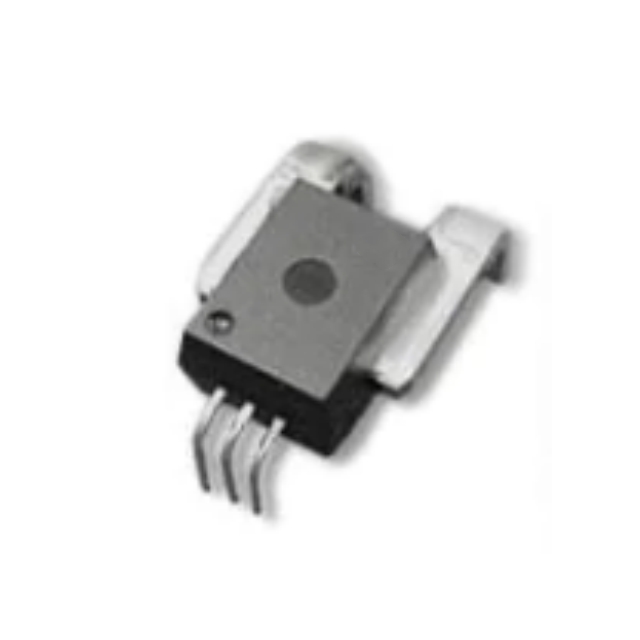

The ACS772LCB-100B-SMT-T 200kHz automotive galvanic isolation current sensor IC features a proprietary CB package with a wide current sensing range (50A to 400A) and very low power loss. High performance is achieved with ±2.1% accuracy over the entire IC life from room temperature to high temperature. 2.5-μs response time allows overcurrent fault detection in safety-critical applications, while enhanced galvanic isolation reduces material costs. In addition, a single 5V supply is available.

Product Features

Measurement: AC/DC current

Sensor type: Hall effect

Detection current: ±100A

Number of channels: 1

Output: Ratio, Voltage

Sensitivity: 20 mV/A

Frequency: DC ~ 200kHz

Linearity: ±0.9

Voltage - Supply: 4.5V ~ 5.5V

Response Time: 2.5µsecs

Current - Supply (Max) 15mA

Operating Temperature: -40°C ~ 150°C

Class: Automotive Grade

Certification: AEC-Q100

Polarisation: Bidirectional

Mounting Type: Surface Mount

Package/Housing: 5-CB with moulded leads, SMT

Supplier Equipment Package: 5-CB

Applications

● OBC

● Electric Vehicle Charging Stations

● Inverters

● Power supply

● Overcurrent fault protection

● Any high-precision current sensing application requiring >50A (continuous), 2.5μs response time and high isolation.
