EQCO125X40C1-I/8EX 12.5Gbps Equalizers/Repeaters/Drivers come in a single chip that repeats high-speed 8b/10b coded data signals with a downstream bit-rate between 1.25Gbps to 12.5Gbps. The EQCO125X40C1-I/8EX uses the same chip at device (camera) and host (frame grabber) for asymmetric full-duplex communication. These devices can be used as stand-alone cable repeater with simultaneous power and also for downlink and uplink over a single cable. The high-speed direction (or downlink) has a simultaneous complementary uplink, operating at 20.833Mbps or 41.666Mbps 8b/10b coded signaling.

Feature

Equalizer for up to 40m of coaxial cable at 12.5Gbps or 130m at 1.25Gbps over a single Belden 1694A coax cable

Same chip used at device (camera) and host (frame grabber) for asymmetric full-duplex communication

Lower cost version EQCO125T40 for device (camera) side only

Cable types supported are 75 coax, 50 coax, and 100 STP (Shielded Twisted Pair)

Simultaneous signaling over a single cable:

Up to 12.5Gbps downlink

21Mbps or 42Mbps uplink

Power over coax

Can also be used as a stand-alone cable repeater with simultaneous power and also for downlink and uplink over a single cable

Integrated termination resistors for differential signaling

Clock-Data Recovery (CDR) restores signal integrity in both directions

Both uplink and downlink include an equalizer, CDR, and cable driver

Reference-clock free operation (no crystal or clock needed)

Low power consumption / single supply @ 1.25V

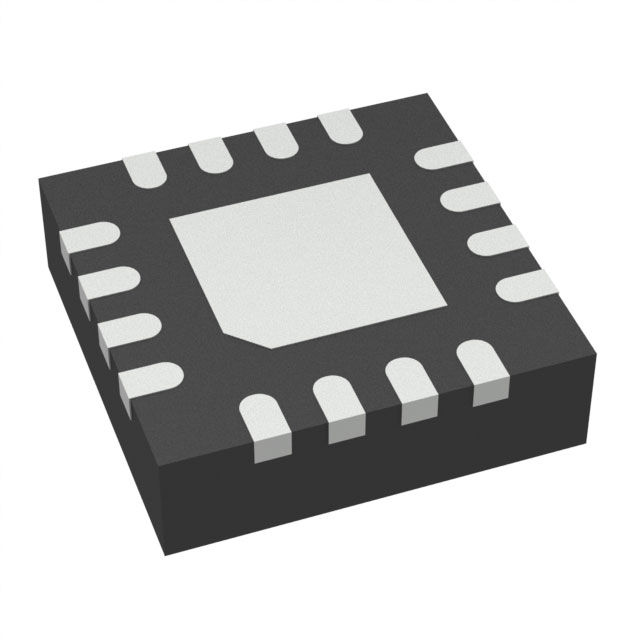

16-pin 0.65mm pin pitch 4mm QFN package

Small PCB footprint with few off-chip components

Industrial temperature range

Pb-free and RoHS compliant

Applications

CoaXPress compliant systems, supports allCoaXPress standards and speeds

Links for high-definition Cameras

Links between FPGAs

High-speed capture cards over long cable lengths

Machine Vision, Military, Aerospace, Medical,Broadcast and Surveillance cameras, IntelligentTraffic Systems

When a single cable carrying power, video dataand camera control stream is needed
