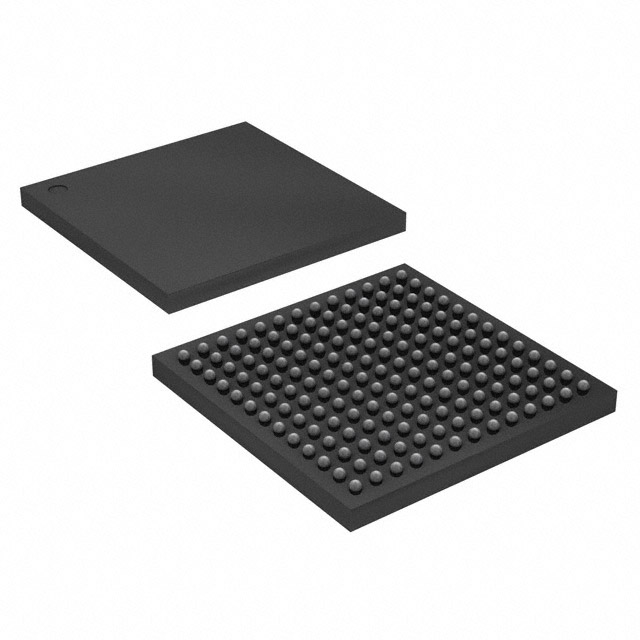

PIC32MZ1064DAB169T-I/HF is 32-bit Graphics Applications MCU Microcontroller with XLP Technology.Up to 2 MB Live Update Flash,640 KB SRAM, and 32 MB DDR2 SDRAM.

Feature

32 KB I-Cache, 32 KB D-Cache

MMU for optimum embedded OS execution

microMIPS™ mode for up to 35% smaller code size

Programmable PLLs and oscillator clock sources

Dedicated PLL for DDR2

Fail-Safe Clock Monitor

Independent Watchdog and Deadman Timers

Fast wake-up and start-up

Various power management options for extreme powerreduction (VBAT, Deep Sleep, Sleep and Idle)

Deep Sleep current: < 1 µA (typical)

Integrated POR and BOR

Programmable High/Low-Voltage Detect (HLVD) on VDDIOand High-Voltage Detect (HVD) on VDDR1V8

DDR2 SDRAM interface (up to DDR2-400)

SD/SDIO/eMMC bus interface (up to 50 MHz)

Serial Quad Interface (up to 80 MHz)

External Bus Interface (up to 50 MHz)

3-layer Graphics Controller with up to 24-bit color support

High-performance 2D Graphics Processing Unit (GPU)

Audio data communication: I2S, LJ, and RJ

Audio control interfaces: SPI and I2C

Audio host clock: Fractional clock frequencies with USB synchronization

USB 2.0-compliant High-Speed On-The-Go (OTG) controller

10/100 Mbps Ethernet MAC with MII and RMII interface

Six 4-wire SPI modules (up to 50 MHz)

SQI configurable as additional SPI module (up to 80 MHz)

Five I2C modules (up to 1 Mbaud) with SMBus support

Parallel Host Port (PMP)

Peripheral Pin Select (PPS) to enable function remap

5V-tolerant pins with up to 32 mA source/sink

Selectable open drain, pull-ups, and pull-downs

Selectable slew rate control

External interrupts on all I/O pins

PPS to enable function remap
