The R7F701275EABG-C microcontroller, featuring the G3MH CPU core, is an ideal choice for HEV/EV motor control. The following are its key parameters:

Core processor: RH850G3MH

Core specification: 32-bit dual-core

Speed: 320MHz

Connection capabilities: CANbus, CSI, LINbus, SCI

Peripheral devices: DMA, PWM, WDT

I/O count: 99

Program storage capacity: 4MB (4M x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 320K x 8

Voltage - Power supply (Vcc/Vdd) : 4.5V to 5.5V

Data converter: A/D 48x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 150°C (TJ)

Installation type: Surface mount type

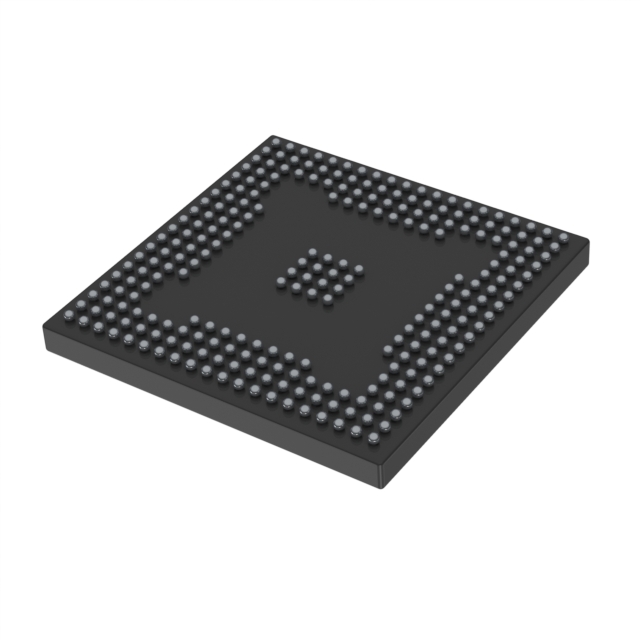

Packaging/Housing: 252-FBGA

The R7F701275EABG-C microcontroller belongs to the RH850/C1M-Ax series and is mainly equipped with the RH850 series G3MH (C1M-A2 is dual-core) CPU core (C1M-A1 operates at 240MHz and C1M-A2 operates at 320MHz). Possessing outstanding processing capabilities. In addition to ROM, RAM and DMA, this microcontroller also features a variety of built-in timers (such as motor control timers) and multiple serial interfaces (such as CAN) Among them, CAN FD compatible, 12-bit A/D converter (ADC), R/D converter (RDC3A) that can convert the output signal of the resolver into digital Angle information, CPU, and parallel motor control unit (EMU3), etc. It is also equipped with a variety of peripheral functions suitable for HEV/EV motor control. In addition, the C1M-A2 can control two motors simultaneously.

Application scenarios

The R7F701275EABG-C microcontroller, through multi-core collaboration and low-power design, strikes a balance between high performance and the strict requirements of automotive electronics for reliability and safety. It is suitable for scenarios such as HEV/EV drive systems and power management.
