The R7F7010073AFP microcontroller focuses on low power consumption and low cost for vehicle body applications. This device is a high-end microcontroller with a 32-bit RH850G3K core, used for vehicle body control. The features of this device are low power consumption, high processing capacity and variable peripheral functions.

In particular, low power consumption is achieved by supporting wide standby control and power insulation through the use of port polling considering body control applications, standby control for AD conversion, and LIN communication. In addition, the R7F7010073AFP also supports safety features. The local area network has been strengthened by upgrading the CAN and LIN master/slave modules.

Core features

CPU: G3K core, up to 80MHz

Voltage: 3V to 5.5V

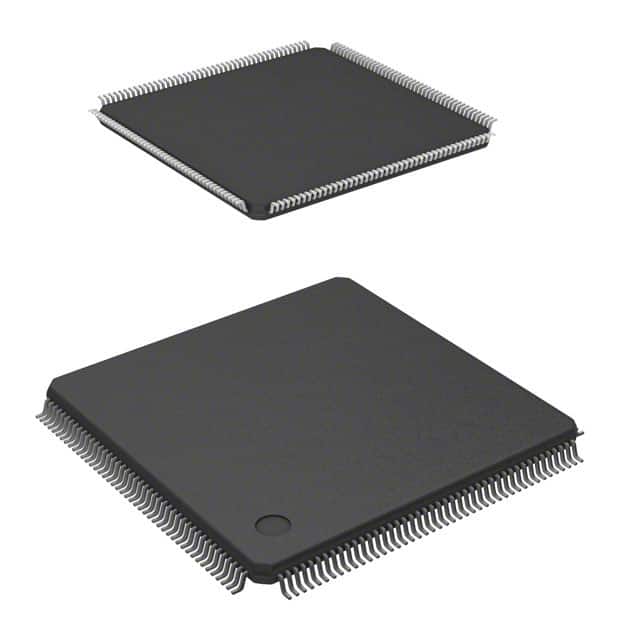

Package: 176-pin LFQFP

Memory: SRAM maximum 192KB, program flash memory maximum 2MB

Timer: 8-channel 32-bit timer, 48-channel 16-bit timer, 2-channel watchdog timer, OS x 1-channel timer

PWM: 72-channel PWM output, 3-phase PWM output function

Analog function: 4-channel 10-bit A/D converter, 91-channel 12-bit A/D converter

On-chip oscillator (MHz) : 8MHz, low speed: 240kHz

Others: PLL, RTC, power-on reset, low voltage detection

Typical applications

R7F7010073AFP is mainly used in fields such as automotive body control, industrial equipment control, and Internet of Things devices, and supports high-precision peripheral management. ‌
