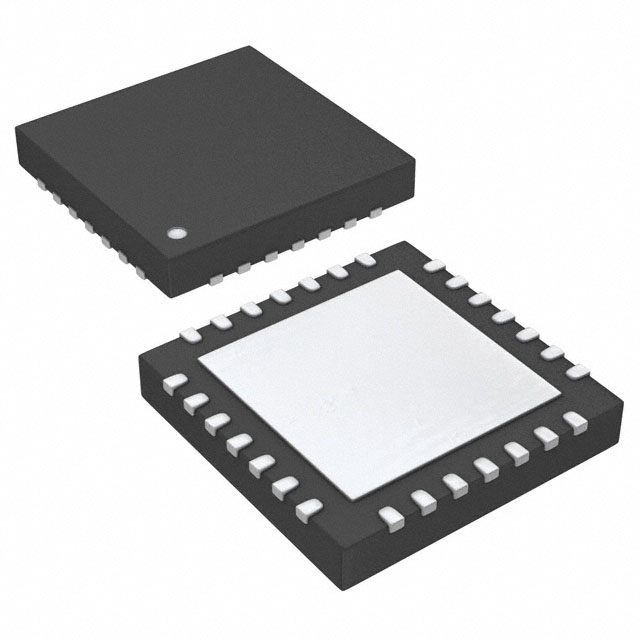

PIC24FJ128GL302T-I/MV 16-bit MCUS are ideal for low power and interconnect applications. The PIC24FJ 'GL' series of low-power microcontrollers integrates kernel-independent peripherals (CIP) and extends kernel-independent animation to segmented LCD drivers. With sleep currents as low as hundreds of nA while retaining the full RAM content, the "GL" series is ideal for extending battery life in any portable application. The MCU has 8KB of RAM buffer and 128KB of enhanced flash program memory.

specification

Core processor: PIC

Kernel specification: 16 bits

Speed: 32MHz

Connection capability: I²C, IrDA, LINbus, SPI, UART/USART

Peripheral: DMA, LCD, PWM, WDT

Number of I/ OS: 21

Program storage capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 8K x 8

Voltage - power supply (Vcc/Vdd) : 2V ~ 3.6V

Data converter: A/D 9x10/12b

Oscillator type: External

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/housing: 28-UFQFN bare pad

Supplier Package: 28-UQFN (4x4)

Basic product number: PIC24FJ128GL302
