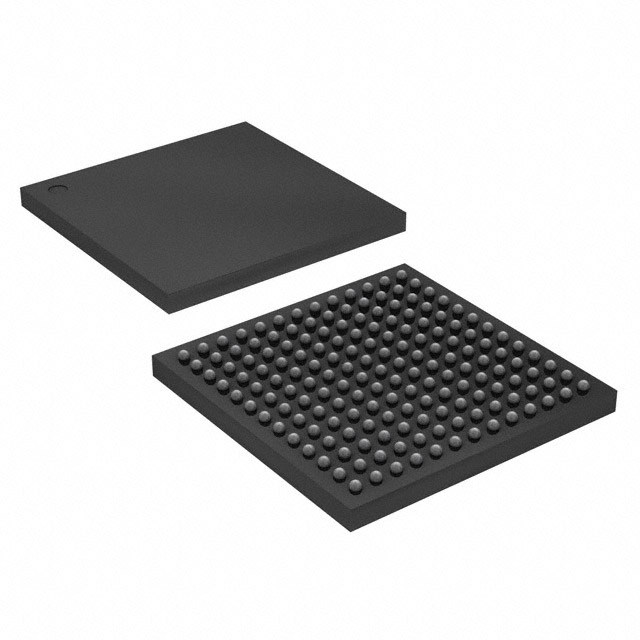

PIC32MZ2064DAB169-I/HF series offers MPU like performance with ease of design of an MCU for GUI designs with it’s 2MB Flash and 640KB of SRAM, available on-chip 32MB or 128MB externally addressable DDR2 DRAM, integrated Graphics Controller, Graphics Processor, 200 MHz speed, 12-bit 18 MSPS ADC module with up to 45 analog inputs, CAN and HS USB.

Product Features

200 MHz/330 DMIPS, MIPS32 microAptiv core

Dual Panel Flash for live update support

12-bit, 18 MSPS, 45-channel ADC module

Memory Management Unit for optimum embedded OS execution

microMIPS mode for up to 35% code compression

CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators

SPI/I2S interfaces for audio processing and playback

Hi-Speed USB Device/Host/OTG

10/100 Mbps Ethernet MAC with MII and RMII interface

Crypto Engine with a RNG for data encryption/decryption and authentication (AES, 3DES, SHA, MD5, and HMAC)

Peripheral and memory region access control

Temperature Range - 40°C to 85°C, - 40°C to 105°C (planned)

Operating voltage range of 2.3V to 3.6V

2MB Flash memory (plus an additional 160 KB of Boot Flash)

640KB SRAM memory

microMIPS mode for up to 35% smaller code size

Four 64-bit accumulators

Single-cylce MAC, saturating and fractional math

IEEE 754-compliant

Code-efficient (C and Assembly) architecture

Various power management options for extreme power reduction (VBAT, Deep Sleep, Sleep and Idle)

Deep Sleep current: < 1µA (typical)

Integrated POR and BOR

Programmable High/Low-Voltage Detect (HLVD) on VDDIO and High-Voltage Detect (HVD) on VDDR1V8

Programmable PLLs and oscillator clock sources

Dedicated PLL for DDR2

Fail-Safe Clock Monitor

Independent Watchdog and Deadman Timers

Fast wake-up and start-up

50 MHz SD/SDIO/eMMC bus interface

50 MHz External Bus Interface (EBI)

80 MHz Serial Quad Interface (SQI)

Peripheral Pin Select (PPS) functionality to enable function remap

Up to 8 channels of hardware DMA with automatic data size detection

Six UART modules (25 Mbps): Supports LIN 1.2 and IrDA protocols

Two CAN modules 2.0B Active with DeviceNet addressing support

Six 4-wire SPI modules (80 Mbps)

SQI configurable as an additional SPI module (50 MHz)

Five I2C modules (up to 1 Mbaud) with SMBus support

Parallel Master Port (PMP)

Hardware Real-Time Clock and Calendar (RTCC) module

Nine 16-bit Timers/Counters (four 16-bit pairs combine to create four 32-bit timers)

Nine Input Capture (IC) and Nine Output Compare(OC)/PWM outputs

3-layer Graphics Controller with up to 24-bit color support

High-performance 2D Graphics Processing Unit (GPU)

Audio data communication: I2S, LJ, RJ, USB

Audio data control interface: SPI and I2C™

Audio data master clock: Fractional clock frequencies with USB synchronization

12-bit ADC Module:

18Msps rate with six Sample and Hold (S&H) circuits (five dedicated and one shared)

Up to 45 analog inputs

Can operate during sleep and idle modes

Multiple trigger sources

Six digital comparators and six digital filters

Two comparators with 32 programmable voltage references

Temperature sensor with ±2°C accuracy

Charge Time Measurement Unit (CTMU)

AEC-Q100 REVG (Grade 2 -40oC to +105oC) (Planned)

Class B Safety Library, IEC 60730

Back-up internal oscillator

In-circuit and in-application programming

4-wire MIPS® Enhanced JTAG interface

Unlimited program and 12 complex data breakpoints

IEEE 1149.2-compatible (JTAG) boundary scan

Non-intrusive hardware-based instruction trace

MPLAB Harmony – PIC32 software development framework

C/C++ compiler with native DSP/fractional and FPU support

TCP/IP, USB, Graphics, and mTouch middleware

MFi, Android, and Bluetooth audio frameworks

RTOS Kernels, Express Logic ThreadX FreeRTOS, OPENRTOS, Micriµm, µC/OS and SEGGER embOS
