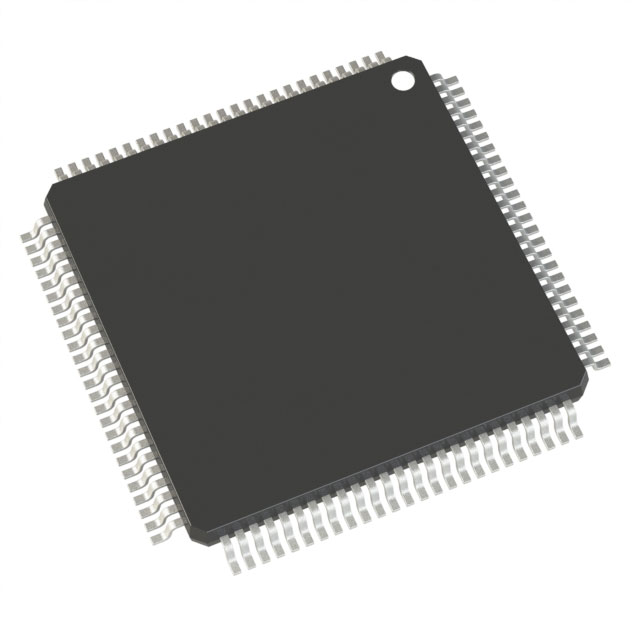

The PIC32MZ1024ECH100-I/PT embedded connectivity microcontrollers are 32-bit MCUs with integrated audio and graphics interfaces, Hi-Speed USB hubs, Ethernet, and advanced analogue features.The PIC32MZ EC family includes up to 2MB of real-time update Flash memory and up to 512KB of SRAM.Targeted at embedded connectivity and IoT applications, these devices are available in a These devices are designed for embedded connectivity and IoT applications and are available in a variety of package options for design flexibility.

Product Features

200 MHz/330 DMIPS, microAptiv core

DSP-enhanced core:

Four 64-bit accumulators

Single-cycle MAC, saturation maths and fractional maths

Dual-plane flash memory for real-time updates

10-bit, 500 KSPS, 40-channel ADC module

Memory management unit for optimised embedded OS execution

microMIPS mode with up to 35% code compression

CAN, UART, I2C, PMP, EBI, SQI and analogue comparators

SPI/I2S interface for audio processing and playback

Hi-Speed USB Device/Host/OTG

10/100 Mbps Ethernet MAC with MII and RMII interfaces

Temperature range

40°C to 85°C;

40°C to 125°C (planned)

Operating voltage range: 2.2V to 3.6V

1MB of flash memory (plus 160KB of boot flash)

512KB SRAM memory

microMIPS mode reduces code size by up to 35 per cent

DSP-enhanced core:

Four 64-bit accumulators

Single-channel MAC, saturation maths and fractional maths

Code-efficient (C and assembly) architecture

Low power management modes (idle and sleep)

50 MHz External Bus Interface (EBI)

50 MHz Serial Quad Interface (SQI)

Peripheral Pin Selection (PPS) feature enables functional remapping

8 hardware-programmable DMA channels and 16 dedicated DMA channels with automatic data size detection

Six UART modules (25 Mbps): supports LIN 1.2 and IrDA protocols

Two 2.0B Active CAN modules with DeviceNet addressing support

Six 4-wire SPI modules (50 Mbps)

SQI configurable as additional SPI module (50 MHz)

Five I2C modules (up to 1 Mbaud) with SMBus support

Parallel Master Port (PMP)

Hardware real-time clock and calendar (RTCC)

Nine 16-bit timer/counters (four 16-bit pairs combined into four 32-bit timers)

Nine capture inputs and nine compare/PWM outputs

Graphical interface: EBI or PMP

Audio data communications I2S, LJ, RJ, USB

Audio data control interfaces SPI and I2C

Audio data master clock Fractional clock frequency, USB synchronisation

10-bit ADC module:

500 Ksps Rate with a Sample and Hold (S&H) Circuitry

Up to 40 analogue inputs

Flexible independent ADC trigger sources

6 digital filters and comparators

Two comparators with 32 programmable voltage references

Temperature sensor with ±2°C accuracy

In-circuit and application programming

4-wire MIPS® enhanced JTAG interface

Unlimited program breakpoints and 12 complex data breakpoints

IEEE 1149.2 (JTAG) boundary-scan compatible

Hardware-based, non-intrusive instruction trace
